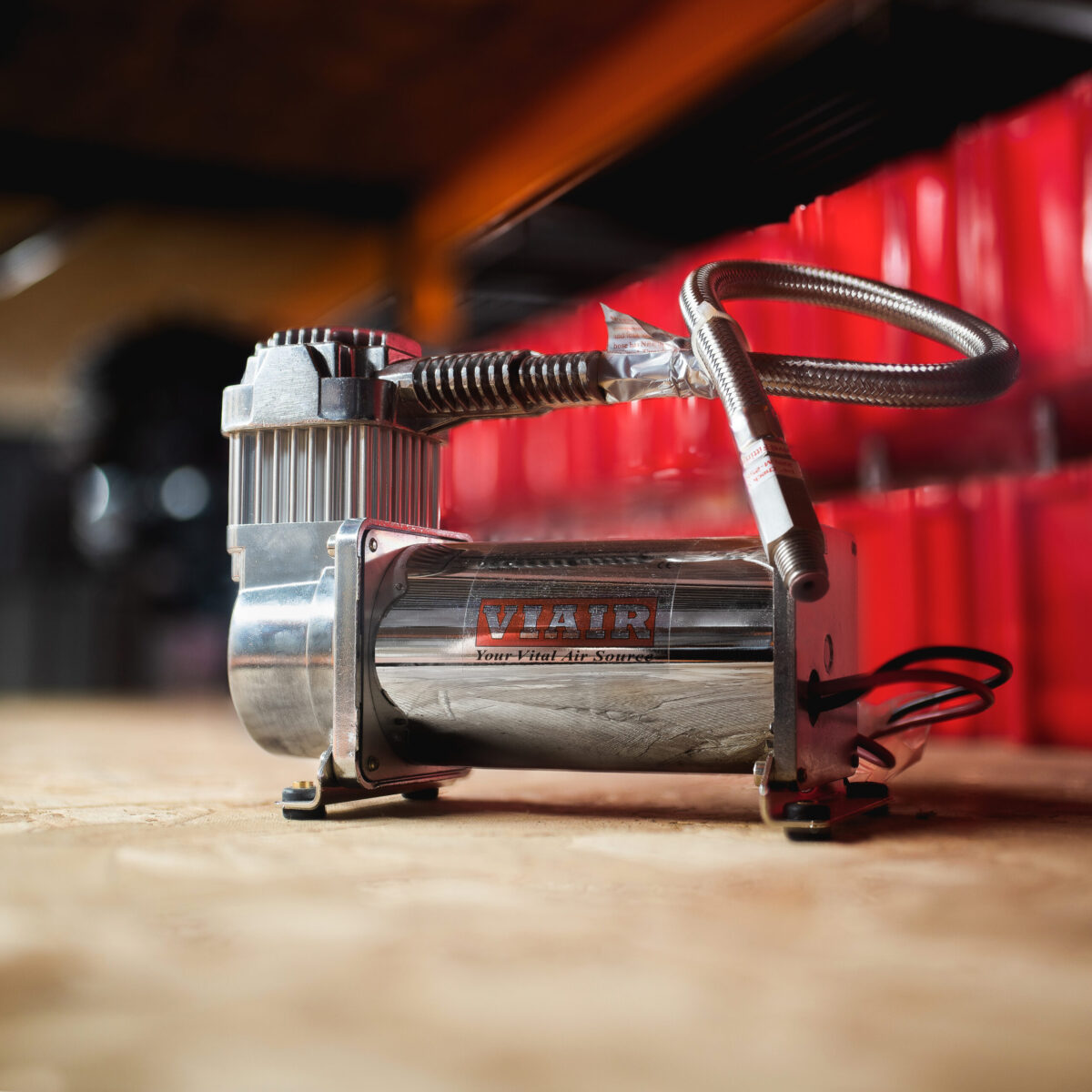

Viair Chrome 380C Air Compressor (200PSI)
£179.95inc 20% VAT
OE Code: 16380
Description
Viair Chrome 380C Air Compressor (200PSI)
Classic Aircooled VW Air Compressors parts by Limebug
380C is a truly-rated continuous duty, 12-volt, 200 PSI compressor. It is capable of filling a 5.0-gallon tank from 165 PSI to 200 PSI in
3 1/2 minutes consistently, while never pulling more than 23 amps of power (@ 13.8 volts). Features include a standard 1/4″ stainless steel braided leader hose with 1/4″ NPT inline check valve and insulated wiring.
Note: Use thread sealant for proper installation.
Teflon tape is not recommended. Properly sealed,
recommended torque is 12 to 15 ft. lbs.
Features:
– Check Valve
– Vibration Isolators
– Mounting Hardware
– Stainless Steel Braided Leader Hose
– Air Line for Remote Mount Air Filter
– Remote Mount Air Filter Assembly
– (2) Replacement Air Filter Elements
– Installation Instructions
– 12-Volt
– Permanent Magnetic Motor
– Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
– Max. Working Pressure: 200 PSI
– Max. Air Tank Size: 5.0 Gallon
– Max. Amp Draw: 23 Amps
– Ingress Protection Rating: IP67
– Dimensions: 9″L x 4″W x 6.75″H
– Net Weight: 8.75 lbs.
| 2.5 Gallon Tank | Fill Rate |
|---|---|
| 0 to 145 PSI | 3 min. 30 sec. (± 10 sec.) |
| 110 to 145 PSI | 1 min. 10 sec. (± 05 sec.) |
| 0 to 200 PSI | 6 min. 05 sec. (± 10 sec.) |
| 165 to 200 PSI | 1 min. 40 sec. (± 05 sec.) |
| 5.0 Gallon Tank | Fill Rate |
| 0 to 145 PSI | 7 min. 20 sec. (± 10 sec.) |
| 110 to 145 PSI | 2 min. 25 sec. (± 05 sec.) |
| 0 to 200 PSI | 13 min. 25 sec. (± 15 sec.) |
| 165 to 200 PSI | 3 min. 39 sec. (± 10 sec.) |
OE Reference: 16380
SKU: 030010051
Shipping Information
United Kingdom: Free Shipping UK Mainland over £70.00. more info
Europe & EU: more info
USA: Shipping / Tariff Details (Updated): more info
Rest of World (Australia, Canada, Japan): more info
Support
Have a Technical Question, require a Bespoke Quote or need some more Info with Shipping, contact us directly via our Contact Form here.
Alternatively call our Toll Free number
Domestic UK: 01782 922047
International: +44 (1782) 922 047
10:00am – 6:00pm GMT Daily (Excluding Holidays)
Specifications
| OE Code | 16380 |
|---|
