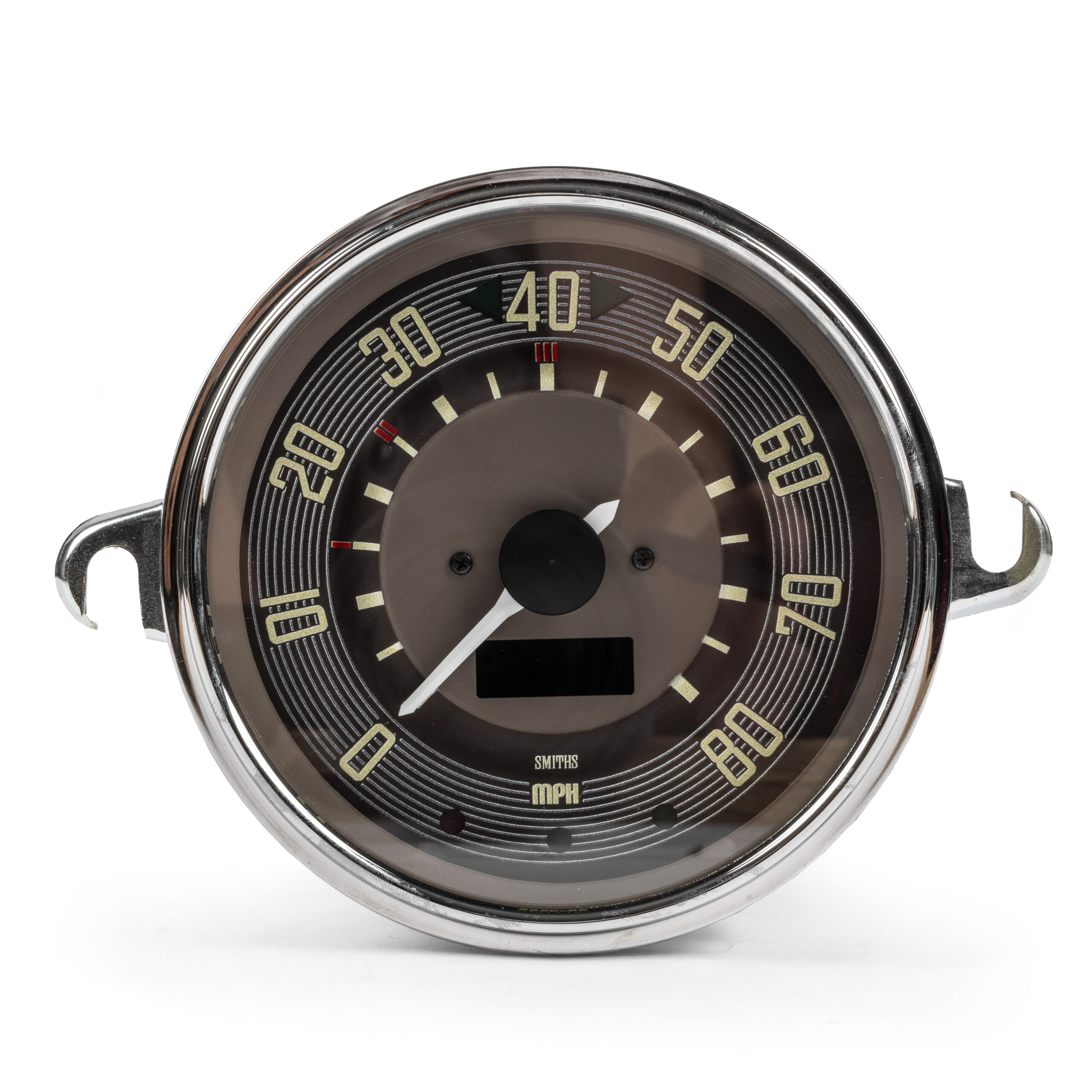

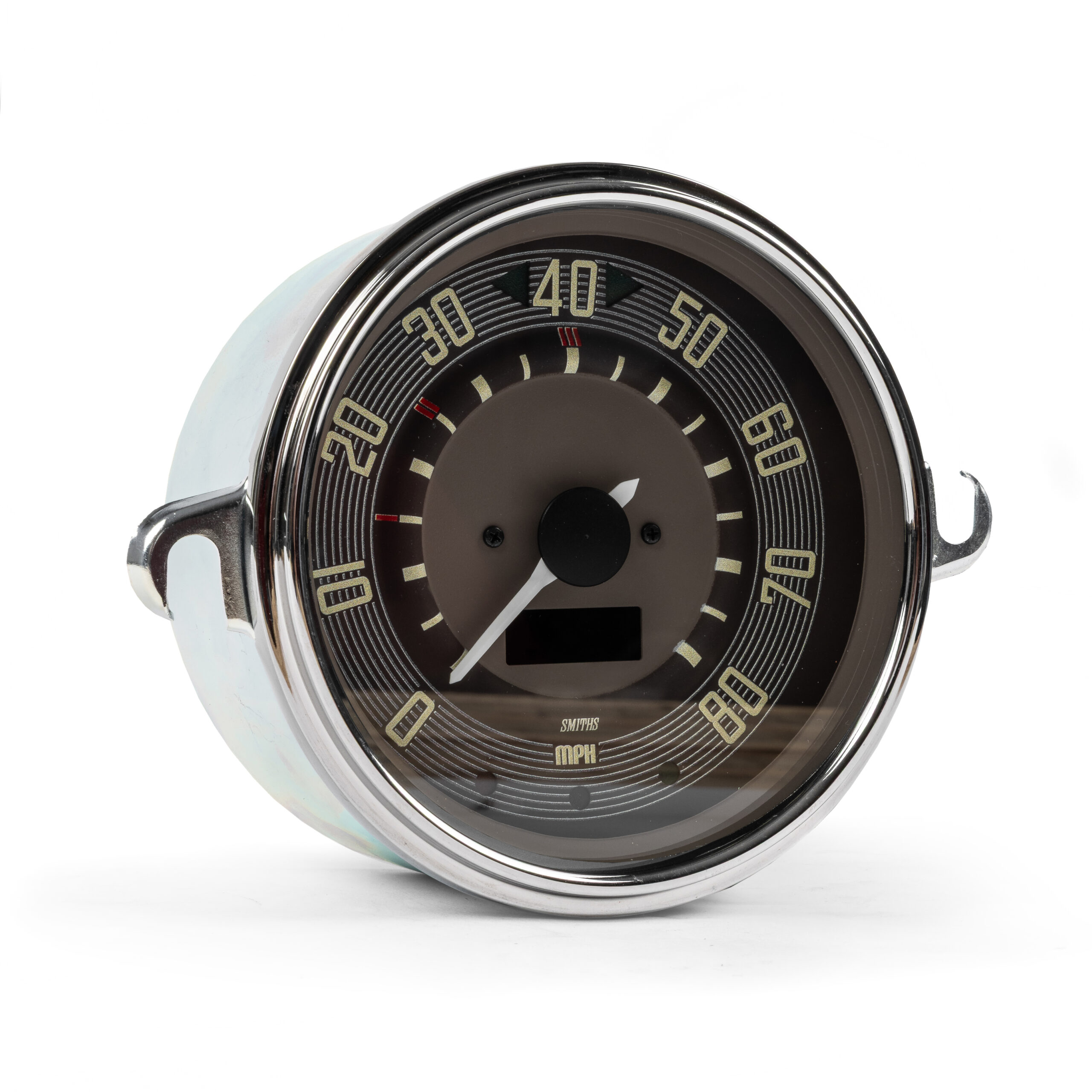

T2 -67 Split Screen Smiths OE Style Brown, 80MPH Digital Speedo Gauge

Classic Aircooled VW Gauges Dials parts by Limebug

Description:

The Smiths digital speedo replaces the original mechanical unit to provide dependable, accurate performance. With a built in ”drive to set” function, setting up your new Smiths digital speedo is a straight forward process, just drive the vehicle over a measured mile to set. LCD panel with odometer and trip display.Requires 12volt charging system. OE style face.

Fitting:

Replacement Speedo Sender cable included, Can also be fitted to Beetles (all years) if this is the look you’re after for your vehicle. Voltage: 12 volts nominal current Consumption: upto100mA Speedo Accuracy: 0-+5% Odometer: 0 to 99999 miles/km Trip: 0 to 999.9 miles/km Speed Sensor Compatibility: any 2 or 3 wire, 5 or 12 volt sender(hall effect, inductive, reed or quenched oscillator Temp Range:-20 to 70 deg C Programming range: 500 to 125000 pulses per mile/km Factory Setting 8380 pulses per mile/km Warning Lights: Indicators – 12 o’clock positioning Battery Warning – 7 o’clock positioning Main Beam – 6 o’clock positioning Oil Pressure – 5 o’clock positioning

Metrics:

Voltage: 12 volts nominalCurrent Consumption: upto100mASpeedo Accuracy: 0-+5%Odometer: 0 to 99999 miles/kmTrip: 0 to 999.9 miles/kmSpeed Sensor Compatibility: any 2 or 3 wire, 5 or 12 volt sender(hall effect, inductive, reed or quenched oscillatorTemp Range:-20 to 70 deg CProgramming range: 500 to 125000 pulses per mile/kmFactory Setting 8380 pulses per mile/kmWarning Lights:Indicators – 12 o’clock positioningBattery Warning – 7 o’clock positioningMain Beam – 6 o’clock positioningOil Pressure – 5 o’clock positioning

Details:
– 12 Volt Gauge

SKU: 100030055
