Description

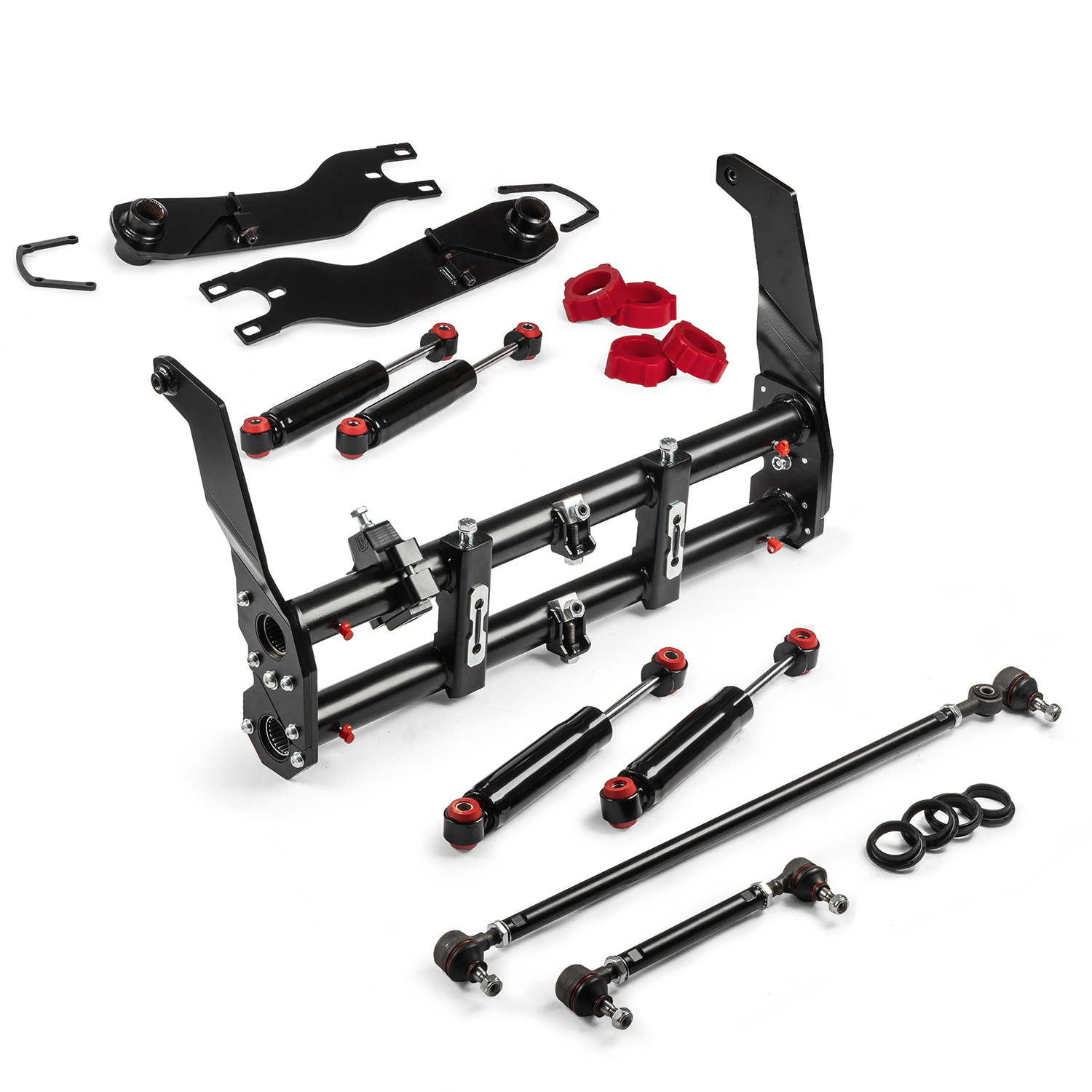

1950-65 Beetle / Ghia 4″ Narrowed Link Pin Complete Swing Axle Lowering Kit

Classic Aircooled VW Complete Lowering Kits parts by Limebug

Limebug lowering kits contain everything you need to professionally lower the front of your Volkswagen with all bolt on parts, and simple installation.

Features:

– Limebug T1 1950-1965 Narrowed Link Pin Beam:
– Limebug T1 Link Pin Beam is manufactured in the UK and are the industry standard in quality and finish.
– Each beam is hand finished so please understand there may be upto a 2 week lead time on production. If this is an issue get in touch prior to ordering to ensure we can meet your build timescales.
– CDS Mech grade tubing, 8mm lasercut end-plates, CNC Body mounts & shock mounts, Dog Leg Shock Tower support. Unique Grease cavity system,– Steering Stop
– High quality delrin Bushes,grease fittings, steering damper mount, supplied in raw finish or powdercoated.

2x T1 1950-65 Beetle Front Link Pin X-Lowered Gas Shock Absorber (222-345mm)

Aircooled VW Gas Charged Ultra High Performance Dampers

Shock Absorber for Extreme-Lowered T1 1950-65

Each Damper is individually hand built to the highest quality in the industry. All Shocks are powder coated ensuring great cosmetic looks and excellent corrosion resistance.

This Ultra High Performance Progressive Dampers are made for the following applications:

Model: DT Progressive Dampers
Type: Gas
Style: Eyelet (Upper), Eyelet (Lower)
Stroke: 222mm-345mm
Sleeve Material/ Colour: Black W/Red Urethane

T1 1950-65 Beetle / Ghia Link Pin 2.5″ Dropped Spindles

Aircooled VW front suspension spindles / steering knuckle components

A smoother ride for link pin front ends. These Dropped Spindles are manufactured from all new castings and feature Chromoly axles. Stronger and narrower than welded spindles! Dropped Spindles maintain factory steering geometry and you can use stock length shocks. Your VW will handle and ride better with a set of Dropped Spindles.

Note: Link Pin Dropped Spindles drop your ride a full 2 1/2″ and extend the tires out 1/2″ on either side.

Details:

– CNC Machined from New Castings!
– Maintains Factory Steering Geometry
– Improves ride & handling
– Full 2 1/2″ Drop
– Chromoly Axles
– Stronger than Welded Spindles
– Narrower than Welded Spindles

T1 Beetle Ghia RHD / LHD up to 4″ Narrowed Track / Tie Rods:

Professionally Engineering Track Rods from Limebug for all Aircooled VW’s stock width or narrowed.

High grade CDS turned seamless tubing is the foundation to building up our through rods, twinned with optional OE quality track rod ends and a hard wearing durable powder coat, this is the only sensible way to narrow your VW Beetle / Ghia.

We also produce these track rods in a stock width, meaning when the track rod end wears out you are not stuck with having to throw away the long rod as factory ends are crimped into place.

These feature, German Quality Track Rod Ends, and UK manufactured Track Rods. All Rods are made to our Width guides, and suited to LHD or RHD Appropriately.

If you have a special requirement or excessively narrowed vehicle we can accommodate this, at additional timescale.

Options:
-Track Width upto 4″ Narrowed Available. All track rods feature adjustment slots for easy tracking alignment.
-Hardware includes 2x LH and 2x RH threaded pinch nuts for security when fitted.
-All Track rods are supplied with a Steering damper eyelet as standard.
-M10 or M12 Stud Sizes available in all four configurations.

T1 RHD / LHD up to 4″ Narrowed Track / Tie Rods:
These feature, German Quality Track Rod Ends, and UK manufactured Track Rods. All Rods are made to our Width guides, and suited to LHD or RHD Appropriately.
Options of Track Width upto 4″ Narrowed Available. All track rods feature adjustment slots for easy tracking alignment,
Also all track rods come with 2x LH and 2x RH Thread Pinch nuts for security when fitted.
All Track rods are suppiled with a Steering Damper Eyelet as Standard.
M10 or M12 Stud Sizes available in all four configurations

Rear Kit

Aircooled VW Static Lowering Packages for T1 Beetle / Ghia Models

Limebug lowering kits contain everything you need to professionally lower the front of your Volkswagen with all bolt on parts, and simple installation.

Features:

– 2″ Adjustable Dropped Plates
– 4x Urethane bushings matched to Spring Plates
– 2x DT Rear Ultra High Performance Gas Charged Shocks

Details Below:

T1 Beetle / Ghia / Type 3 Swing Axle 2″ Dropped Spring Plates (21, 3/4″) Short Spline

Aircooled VW Beetle / Ghia / Type 3 Rear Axle Components

Our 2″ Dropped rear spring plates for swing axle suspension to fit 21 3/4″ torsion bars only, compatible with all Beetle / Ghia models and Type 3 swing axle rear ends.

Each kit includes two dropped spring plates.

Designed to correct toe-in problems on the rear of your vehicle when lowering, each spring plate is extended with longer slots enabling the rear to be laser aligned, This dramatically reduces tyre wear and the loose/ skatey feel to the rear end found on stock spring plates when lowering the vehicle.

These Drop Plates come standard in a Satin Black powder-coated finish.

Details:

– Bush Sizes required: (Not Included) 1, 7/8″ Inner & Outer Bush, 1 pair required per side (total 4 pieces)
– 2″ fixed drop, but can be indexed further for additional drop
– Trackable dropped plates
– Built, designed and engineered in the UK.

T1 Beetle Rear X-Lowered Gas Shock Absorber (222-345mm)

Aircooled VW Gas Charged Ultra High Performance Dampers

Each Damper is individually hand built to the highest quality in the industry. All Shocks are powder coated ensuring great cosmetic looks and excellent corrosion resistance.

This Ultra High Performance Progressive Dampers are made for the following applications:

Model: DT Progressive Dampers
Type: Gas
Style: Eyelet (Upper), Eyelet (Lower)
Stroke: 222mm-345mm
Sleeve Material/ Colour: Black W/Red Urethane

T1 Beetle / Ghia Urethane Knobbly Spring Plate Bush

Aircooled VW Beetle / Ghia Rear Swing Axle Grommet

A total of four bushes are required to fully re-condition your rear spring / torsion bar setup.

Four bushes included in each kit

Details:
– High Quality Urethane Part
– Manufactured in the USA

SKU: 030050002
