Split Screen Stock Width Deluxe Front Air Ride Kit Beam / Front Air Kit (Bolt on)

Classic Aircooled VW Front Air Ride Kits parts by Limebug

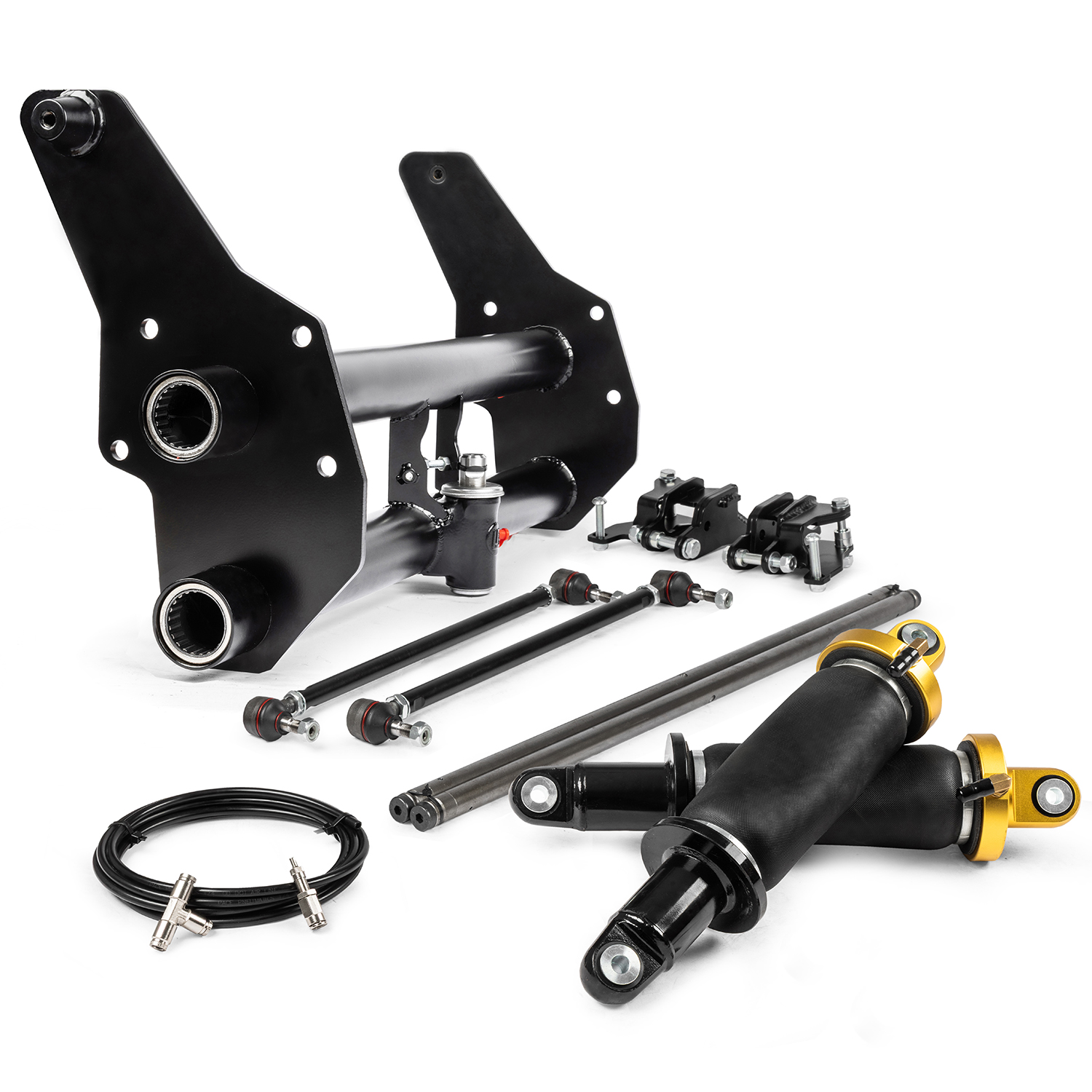

Finally, our complete front air ride assembly for T2 Split Screen Platform, breakdown of each component included below:

Split Screen Stock Width Jawbreaker beam

Built around versatile design including direct mount with no body / chassis modification for Narrowed and Stock width models, flexibility for Air Ride and Static applications as standard, ambidextrous fixings for LHD and RHD models as well as both a factory and 1” beam raise built into every end plate.

Combining this with an increase in castor over factory axle design to achieve improved road holding, particularly at speed whilst also reducing lane wander. Fixed via dual adjusters on both upper and lower CDS single piece beam tube’s and linked to the spindles via our own design raised/ tucked steering pin mount.

Each steering pin is relocated tighter to the beam, both counteracting the effect of increased castor in reference the drag link rod whilst most importantly resolving ackermann angle issues on our 2” and 4” narrowed models.

This increases both lock-to-lock travel whilst reducing steering weight at slower speeds.

Consideration has been given to each van / bus running it’s own unique ride height and wheel choice therefore each beam is furnished with a low profile adjustable steering stop to set limit points in order to prevent fouling.

Further to these features we offer CNC’d Torsion Leaves / Through Rods depending on your application, plus solid core Track Rods pre-narrowed and ready to install as well as brake servo mounts. See options and links below.

Beam Specifications:

– CDS Mech Grade Tubing
– 8mm Lasercut End-plates
– Unique Grease Cavity System
– OEM Style Needle Bearings
– 4x Grease Nipples Fitted
– Custom Steering Damper Mount Fitted
– RHD or LHD
– Supplied Powdercoated Black
– Designed, Manufactured and Assembled in the UK
– Tucked / Raised Steering Pin
– Pre-reamed Trailing arms and Steering Pin for direct installation
– Dual Tier Mounts for Stock and 1" Beam Raise

T2 Split Screen / Bay Window Through Rods

Limebug Gen-II Ultra Strength Through Rods are the perfect solution to setting up Front Air Ride or Coilover applications.

Each Through Rod is manufactured from solid EN8 Stock, machined to work perfectly alongside our narrowed beam range,

All Limebug through rod's feature a deep 'V' taper to ensure a perfect mechanical link between the trailing arm and axle. Gen-II though rods now incorporate our unique class leading multi-lock system as standard.

This listing is for one set of Titan GEN-II through rods enough for one axle (two rods)

MOA 380HD Heavy Duty Goldtops Ultimate Air Ride Front Shock

The MOA380HD Goldtop Ultimate Aircooled VW air shocks, specifically engineered for T2 Split Screen applications, the only air strut with accurate lifting heights, compliant ride with damping tuned specifically for the demanding lightweight rear engined configuration. Featuring Limebug's unique twin cavity body comprising of a damping module and lift module.

Data:

• 273mm-380mm (10.75″-14.96″) Compressed – Extended Range.
• 780lbs of lifting force at 100PSI with re-In forced sidewall.
• Rose Joint (spherical joint) Ends top and bottom to allow for our of true perfect operation.
• Metric 12mm Bosses top and bottom
• 1/4" NPT Sunken Air Tap Mount 1/4" PTC as standard / interchangeable.
• Shallow cut on the lower body for trailing arm clearance through the travel range.
• Scalloped top mount for beam clearance Restricted 100mm Max Expansion Diameter.

Split Screen 1950-67 Bolt On Link Pin Lower Shock Relocators

Limebug Split Screen 1950-67 Shock Relocators reposition the lower shock mounting fixture to allow for correct position for optimum lift/clearance within the tight tolerances on this front Link Pin suspension assembly.

Works perfectly on 1950-1967 Split Screen Air Ride Bus / Van models along with MOA380HD Goldtop Air Shocks

Bolt on Application

Sold in Pairs, includes bolts & washers required to mount the shocks.

Details:

– 2x Sided Shock Relocators
– Bolt-on Fitment
– Dramatically reduce air ride lifting and operating pressures.

T2 Bay Window / Split Screen RHD / LHD up to 4″ Narrowed Track / Tie Rods

High grade CDS turned seamless tubing is the foundation to building up our track rods, twinned with optional OE quality track rod ends and a hard wearing durable powder coat, this is the only sensible way to narrow your VW Bay / Split.

We also produce these track rods in a stock width, meaning when the track rod end wears out you are not stuck with having to throw away the long rod as factory ends are crimped into place.

These feature, German Quality Track Rod Ends, and UK manufactured Track Rods. All Rods are made to our Width guides, and suited to LHD or RHD Appropriately.

Options:

– Track Width upto 4″ Narrowed Available. All track rods feature adjustment slots for easy tracking alignment.
– Hardware includes 2x LH and 2x RH threaded pinch nuts for security when fitted.
– M10 or M12 Stud Sizes available in all four configurations.

Management Options

Management Systems are available to suit all requirements, whether space is confined or you require a more advanced set-up.

2 Way Manual Kit is available in both tankless and with tank formats. These both are an analogue set-up with paddle switches to lift/drop the vehicle and dual needle gauges to monitor pressures. With 2 Way Set-ups this allows the control of each front corner individually to fine tune ride height.

Digital systems are also available such as Airlift 3P. With this set-up, you have simplistic installation and benefit from features such as ride height pre-sets and rise on start up, to prevent driving away without lifting the vehicle. These systems typically operate on a 4-way basis (to control 4 corners individually) however if only running air on the front you can operate this by just using 2 ports on the systems manifold.

1955-67 Split Screen Raised Front Arch Tubs, 40mm, for Lowered Bus (Optional add on)

Gain extra drop across the front axle by raising the front wheel arch tubs.

Weld in tubs, Premium quality for the front wheel arches of Split Screen Bus pair, Run all stock carpets. Approx 40mm Raise.

Kit is weld in. Require minor fettling on walkthrough models, ask for details.

Things to note:

With this set-up it is recommended to run "Flipped Spindles" to gain optimum drop. We do offer these and you can check them out here (All Split Screen spindles require cores or a core fee to be paid).

SKU: 030010414
