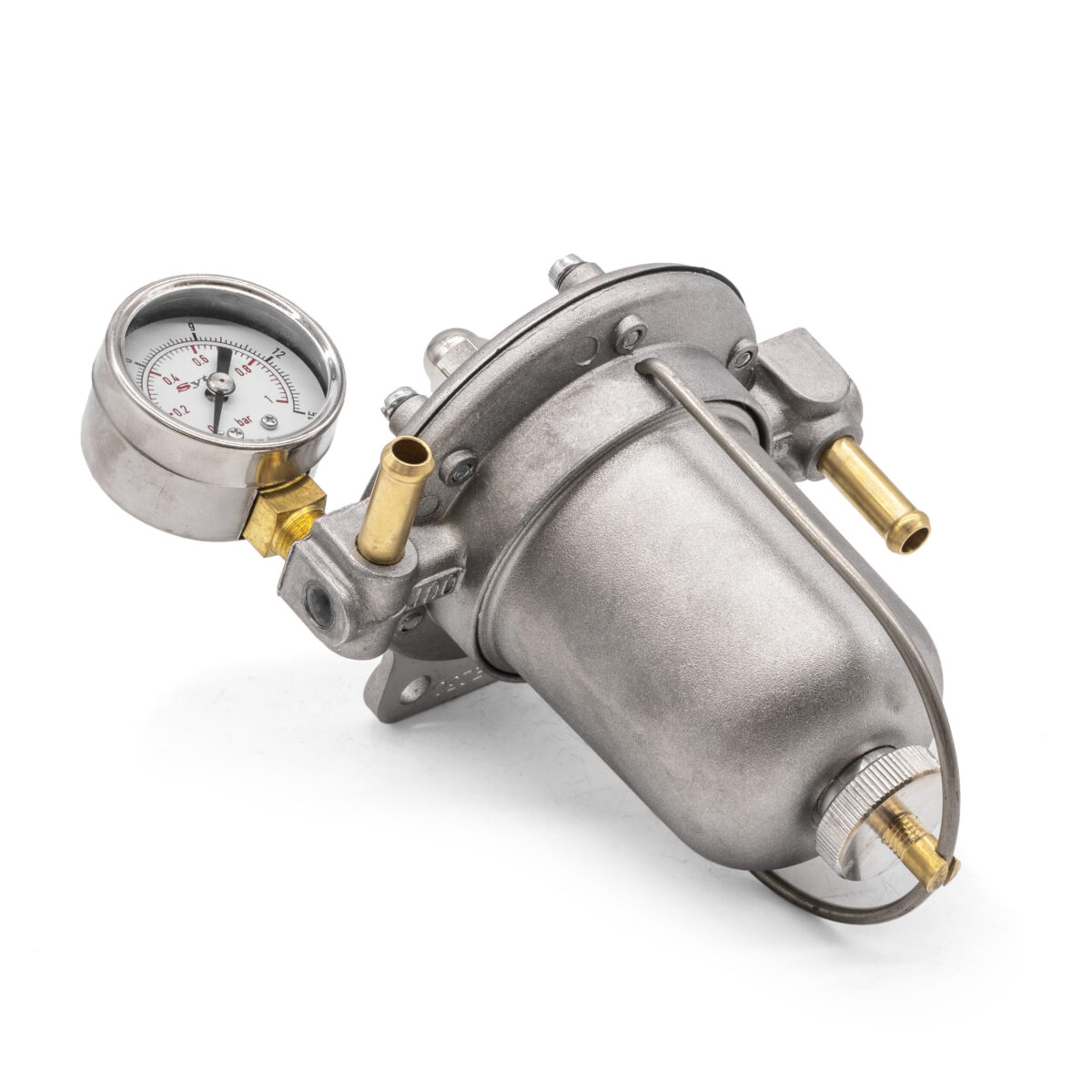

Malpassi 85mm Competition Filter King Fuel Pressure Regulator with Gauge, 8mm Unions, Alloy Bowl

Classic Aircooled VW Pumps Regulators and Fuel Filters parts by Limebug

An essential upgrade if running twin carburettors and an electric fuel pump; these regulators will ensure a consistent flow of fuel at the correct pressure to suit your carbs. Supplied with a mounting bracket, and suitable for 8mm fuel lines, these fully adjustable fuel pressure regulators make a great addition to any VW.

These fuel pressure regulators have been part of a competition fuel system, and a common sight on motorsport vehicles over the past 25 years. The FILTER KING is a popular unit, regularly seen in the motorsport field because of its ability to regulate and filter fuel without restriction. So replace your fuel regulator and filter system with this tried and tested unit.

This Filter King is also provided with an in line Fuel Pressure gauge, which reads 0-15 PSI.

Fitting Guidelines:

To adjust the pressure to the carb, take off the top dome nut, loosen the locking nut and turn (1/4 of a turn at each time) the adjusting screw clockwise to increase the pressure anticlockwise to decrease it, until reaching the desired pressure. Lock first the locking nut and then the top dome nut. Most carbs require about 2.5 psi.

Designed to mount between your fuel pump and the carburettor. Please read the safety instructions about fitting that are included in the box.

Specification:

85mm Alloy Bowl
0-15 PSI Fuel Pressure Gauge

Height:- 130mm
Width:- 116mm
Weight:- 370 gms
Filter Micron:- 10
Unions:- 8mm
Pressure Range:- 1.5-7 psi

Can be used with E10 Fuel

SKU: 010090256
