1972-79 Late Bay Window Complete Rear Lowering Kit

Classic Aircooled VW Rear Lowering Kits parts by Limebug

Complete solution to lowering the rear of your T2 Bay Window the right way. This kit includes a set of adjustable spring plates, plus 4x rubber bushes to re-condition your spring plate mounts, finished with a set of shortened stiffened gas charged shocks or Oil shocks to your preference. It also includes the option to add 3.5" horseshoe plates if you feel that these are further required.

What's included in the kit?

The option of either 1972-79 Late Bay Window Stock or 2″ Dropped Adjustable Dropped Spring Plates

2" Adjustable Dropped Rear spring plates for T2 Bay Windows, compatible with models produced 1972-1979.

Each kit includes two adjustable spring plates and a pair of spacer plates to ensure the correct pinch on the rear, ensuring good lift / drop and smooth movement once desired ride height is set. These plates are simply adjusted using the easy access grub screw block fixed to the side of the spring plates – no need to completely disassemble the rear axle.

These spring plates are produced in house with our bespoke 48 spline broach to ensure precision fitment to your torsion bars. The broached sections are then CNC Robot welded to the spring plate sections to ensure a consistent and precise production. The plates are then pre-blasted and finished in a smooth Satin Black powder coat.

Designed to also correct tow-in problems on the rear of your vehicle as each spring plate features slotted driveshaft mounting holes allowing the rear to be laser aligned, this dramatically reduces tyre wear and the loose/ skatey feel to the rear end found on stock spring plates.

Details:

– 2″ drop and then adjustable approx 4″ either side
– Trackable dropped plates
– Stress relieving spacers included
– Produced by us here in the UK
– Hardwearing Satin Black powder coat finish.

2x T2 Bay Window / Split Screen Rubber Smooth 2 3/8″ Spring Plate Bush, Pair

Torsion Bar Rubber Grommet, Inner or Outer, T2 -79, 4 required per vehicle

The option of either GS380, GS460 or OS560 Shock Absorbers to suit a variety of vehicle ride heights.

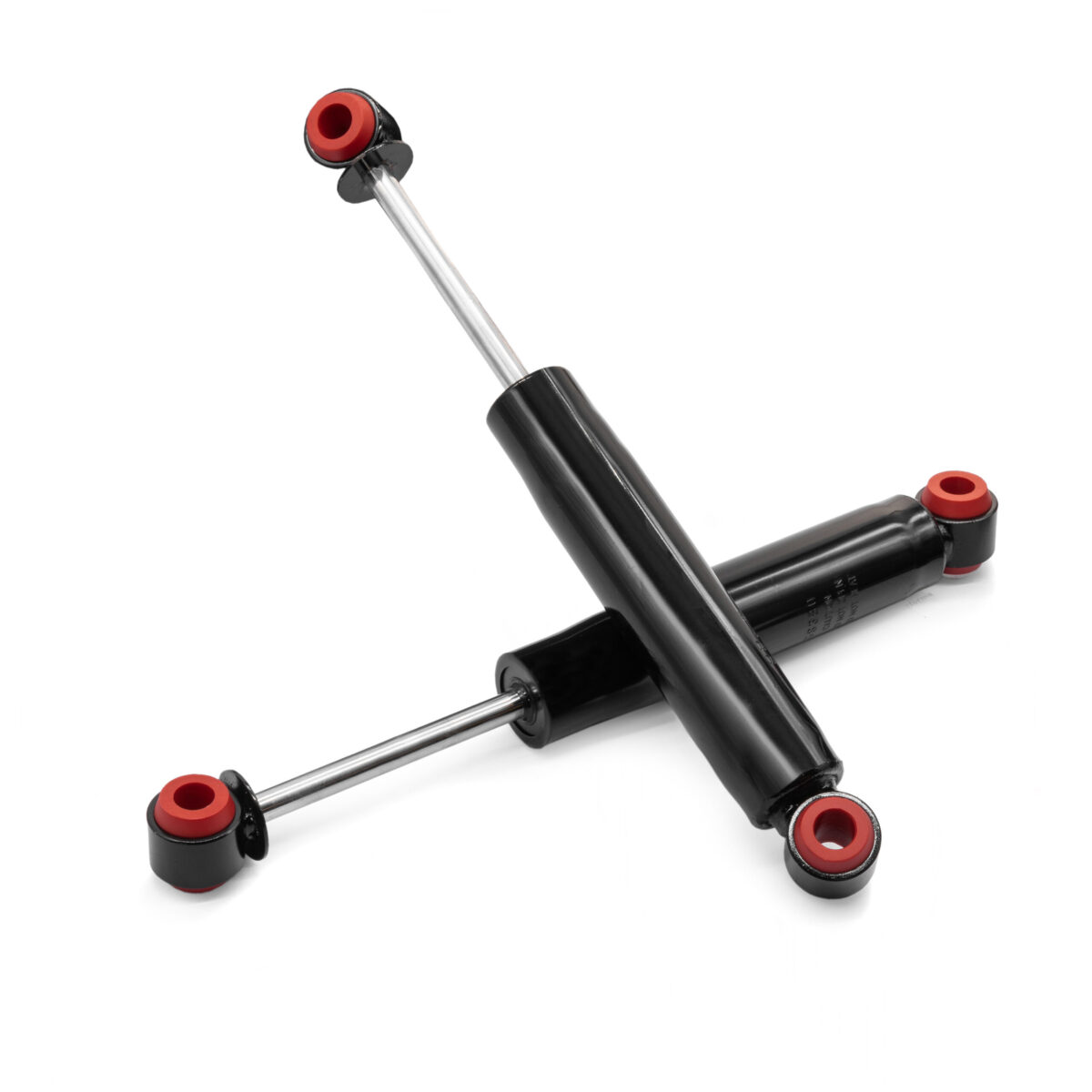

GS380: MOA GS380 Gas-Charged Shock absorber with a minimum compressed length of 255mm, through to 380mm at their maximum expansion.

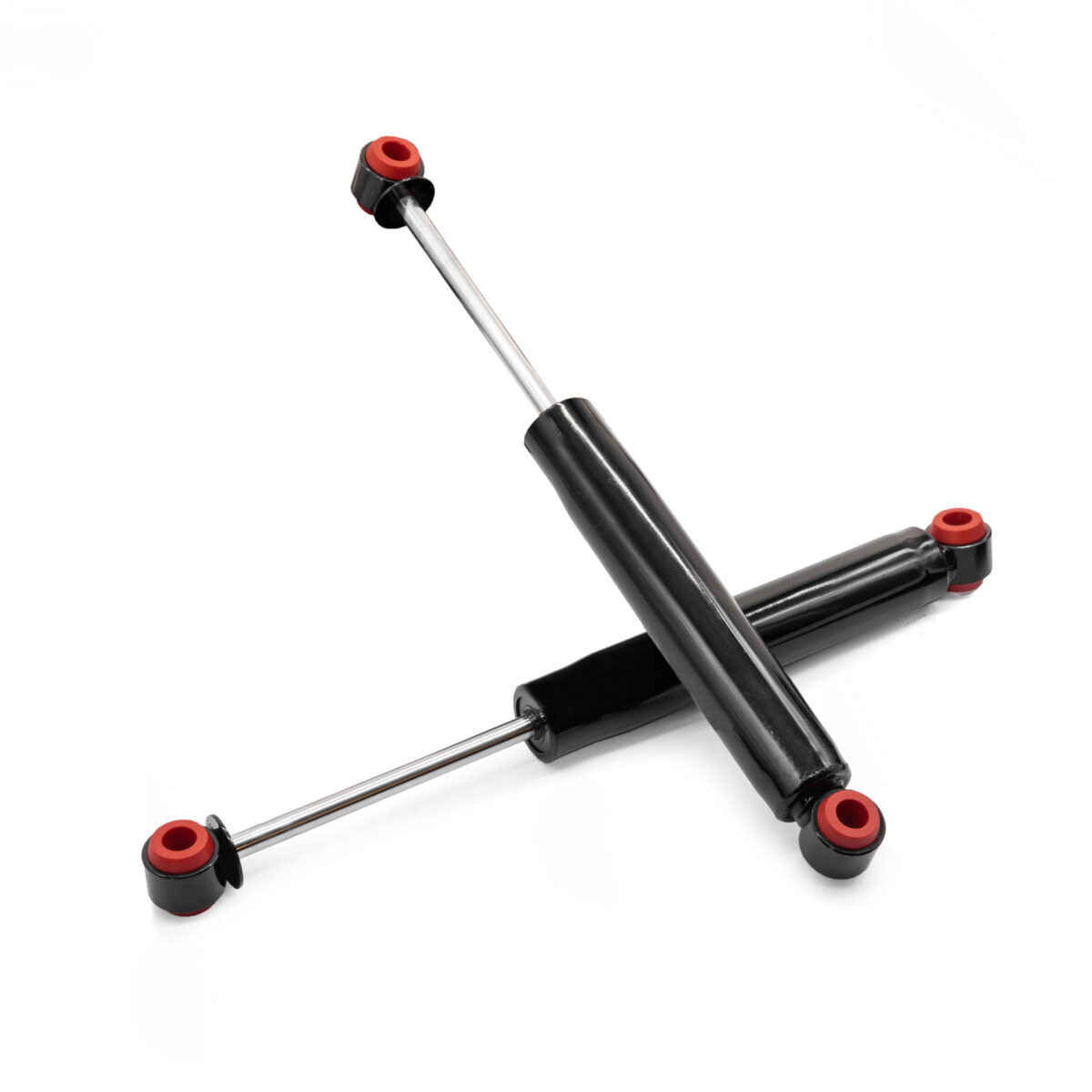

GS460: MOA GS460 Gas-Charged Shock absorber with a minimum compressed length of 295mm, through to 460mm at their maximum expansion

Ultimate High Performance gas charged shock absorbers, providing both rapid rebound, reduced roll, yet with soft damping specifically for lowered aircooled VW models. The GS380 are one of the shorter shocks on the market, well suited to mildly lowered static vehicles.

OS560: MOA OS560 Oil filled Shock absorber with a minimum compressed length of 345mm, through to 560mm at their maximum expansion.

Ultimate High Quality Oil Filled shock absorbers, providing a softer OEM feel dampening suited to stock and mildly lowered rear axles.

With the option to also add:

T2 1968-79 Bay Window 3.5" Drop Rear Lowering Horseshoe Plates

The quick and most effective way to lower the rear of your Bay Window.

Drops the rear end by a fixed 3.5" approximately. All hardware for installation included.

Horseshoe plates retain the factory geometry and suspension travel just 3.5" lower, maintain your tracking.

Two powdercoated satin black horseshoes and fitting hardware are included in the kit, enough to do 1x vehicle.

SKU: 030050036
