The Ultimate Aircooled Air Ride Front Shocks

Why use a universal air shock when you can design one specifically for an air-cooled Volkswagen? Discover the engineering behind Limebug’s MOA430 Goldtops, from their twin-cavity construction and precision damping to their compact mounting geometry and controlled lifting performance.

Why conventional air shocks aren’t always the answer

Air-cooled Volkswagens present an unusual challenge when developing air suspension.

With a lightweight front end, rear-mounted engine and limited space around the suspension, conventional air shocks are not always ideally suited to the application.

Many universal air shock designs prioritise lifting assistance rather than providing a fully integrated suspension solution. This can mean limited usable travel, inconsistent height adjustment or damping characteristics that aren’t optimised for a lightweight Beetle.

The Limebug MOA430 Goldtop was developed specifically to address those requirements.

Rather than adapting a general-purpose shock absorber, we designed a dedicated air suspension unit combining controlled hydraulic damping with an independent pneumatic lifting module.

The result is a compact air shock engineered around the physical constraints and suspension behaviour of classic Volkswagen Beetles, Karmann Ghias and compatible Type 3 conversions.

Twin-cavity construction: Separating lift from damping

Purpose-designed hydraulic damping

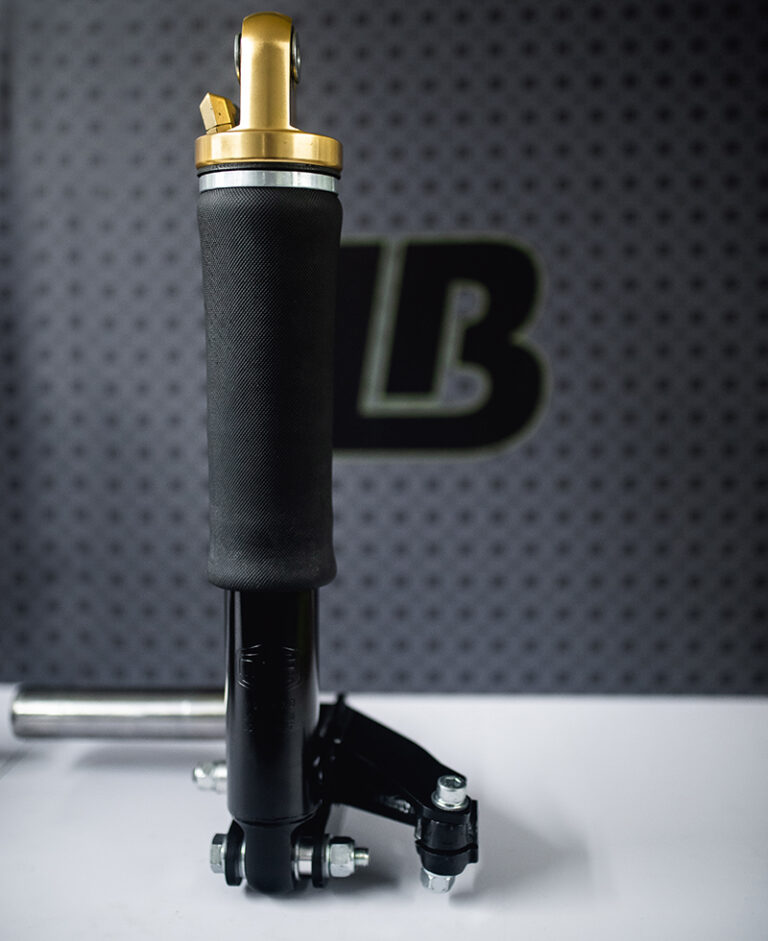

The MOA430 uses a twin-cavity architecture incorporating two distinct functional elements: a hydraulic damping module and a pneumatic lifting module.

The hydraulic system controls suspension movement, while the air sleeve generates the force used to support and adjust the vehicle’s ride height.

This distinction matters because air pressure and damping perform different jobs.

Increasing air pressure changes the force available to support the vehicle, but it should not be relied upon as a substitute for correctly calibrated damping.

The MOA430’s oil valving is selected around the characteristics of the lightweight, rear-engined Volkswagen platform, helping deliver more compliant suspension movement than an unsuitable universal application.

Greater effective lifting area

One of the primary engineering objectives was increasing the effective lifting area without making the assembly too large for the available space.

The MOA430 combines a narrow internal shaft arrangement with an approximately 80mm diameter air sleeve.

The larger effective pneumatic area provides useful lifting force at practical operating pressures while allowing more controlled adjustment of the suspension height.

The sleeve also incorporates a specially shaped rollover section, designed to maintain flexibility through the working range without excessive outward expansion.

The latest design introduces an anti-stick rollover shield to reduce stiction — the initial resistance that must be overcome before components begin moving.

Reducing this resistance helps the suspension respond more freely to smaller movements and uneven road surfaces.

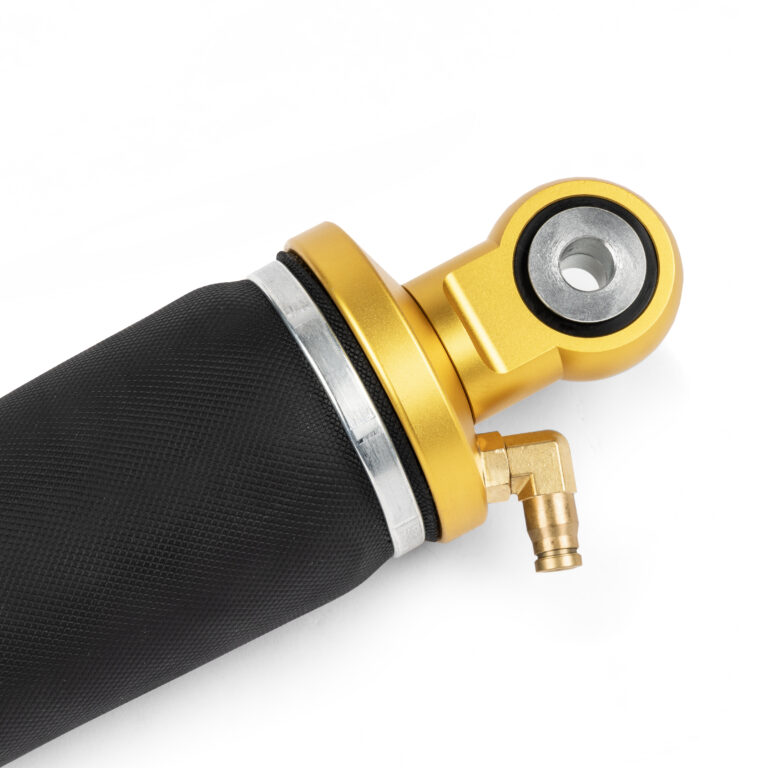

Built for clearance: The Goldtop headstock

Compact 6082 aluminium construction

On a narrowed Beetle front axle, available clearance is often as important as suspension travel.

The MOA430 uses a CNC-machined 6082 aluminium Goldtop headstock with a deliberately narrow profile.

Its shape is designed to provide clearance around the beam towers, trailing arms, chassis and adjacent steering components.

The main body also incorporates a relief section to improve trailing-arm clearance throughout suspension movement.

These features are particularly relevant on Link Pin applications, where the relationship between the shock, trailing arms and narrowed beam can become restrictive.

Recessed air fitting and additional drop

The Goldtop incorporates a recessed air-port arrangement using a standard 1/4-inch NPT connection, normally supplied with a 1/4-inch push-to-connect fitting.

This keeps the air connection accessible while allowing different routing arrangements to suit the installation.

Internally, the headstock features an 8-degree recessed cup designed to improve packaging around the upper seal assembly.

According to Limebug’s design specification, this arrangement provides up to an additional 1.25 inches of available drop compared with the earlier configuration.

The latest rotating-head design also allows improved alignment during installation, helping reduce binding and unwanted side-loading on the shock shaft.

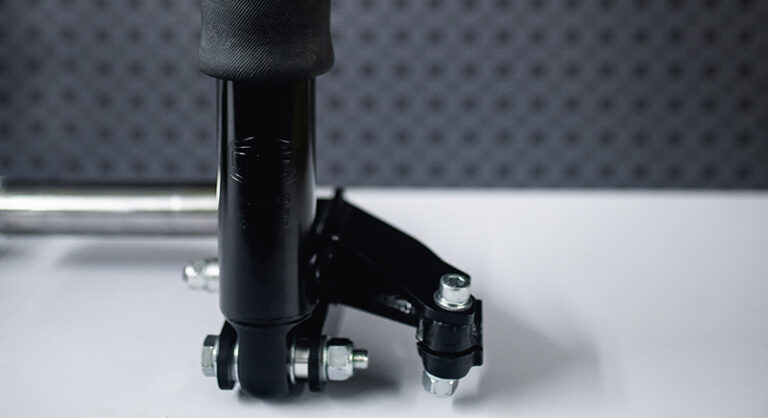

Spherical bearings and structural construction

At both ends, the MOA430 uses Kevlar-lined spherical bearings with anti-rattle features.

Unlike conventional rubber-mounted eyes, spherical bearings accommodate angular movement between the shock and its mounting points.

This is especially important where suspension geometry changes through the operating range.

The mounts incorporate 12mm metric mounting interfaces, protective dust seals and retaining hardware.

The main body uses high-strength chromoly steel construction with robotic welding, providing a robust foundation for the damping and air sleeve assemblies.

Together, these details are designed to improve alignment, durability and operational consistency.

MOA430 specifications and Volkswagen compatibility

Which Volkswagens can use MOA430 air shocks?

The MOA430 range is intended for compatible Limebug front suspension installations on:

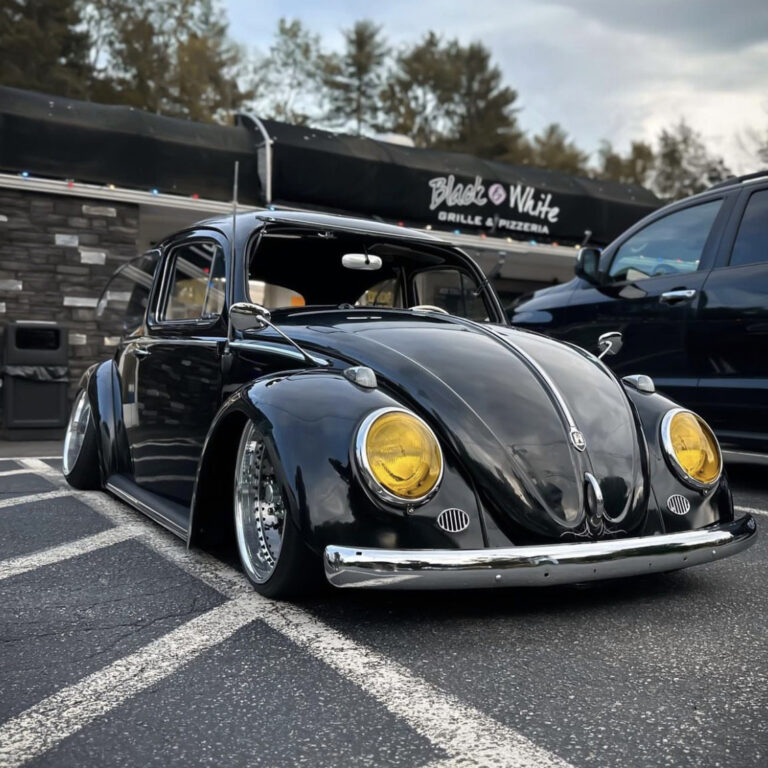

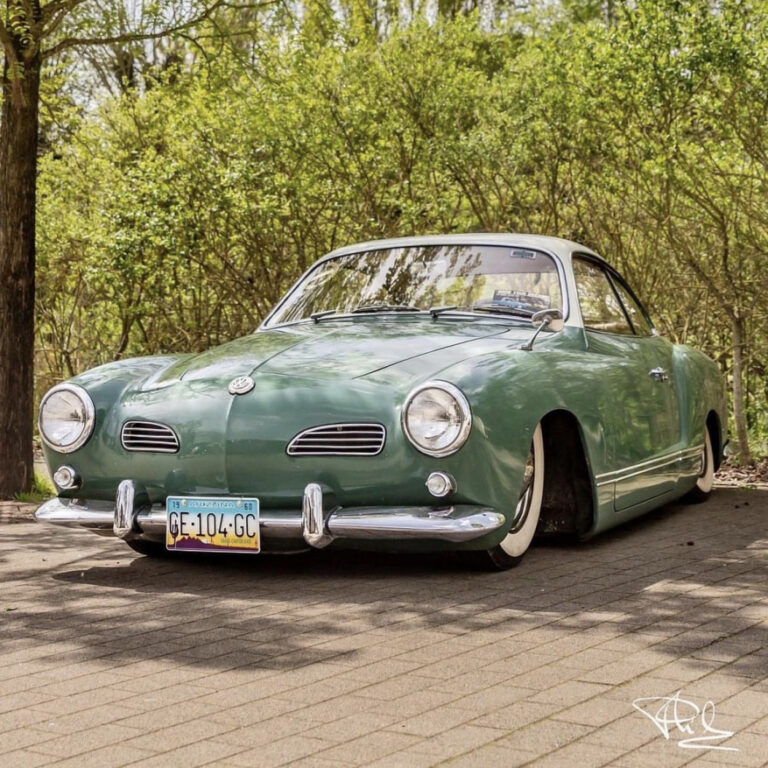

• VW Beetle and Type 14 Karmann Ghia, 1949–1965: Link Pin front suspension applications.
• VW Beetle and Type 14 Karmann Ghia, 1966–1979: Ball Joint applications using compatible Limebug Jawbreaker beams.

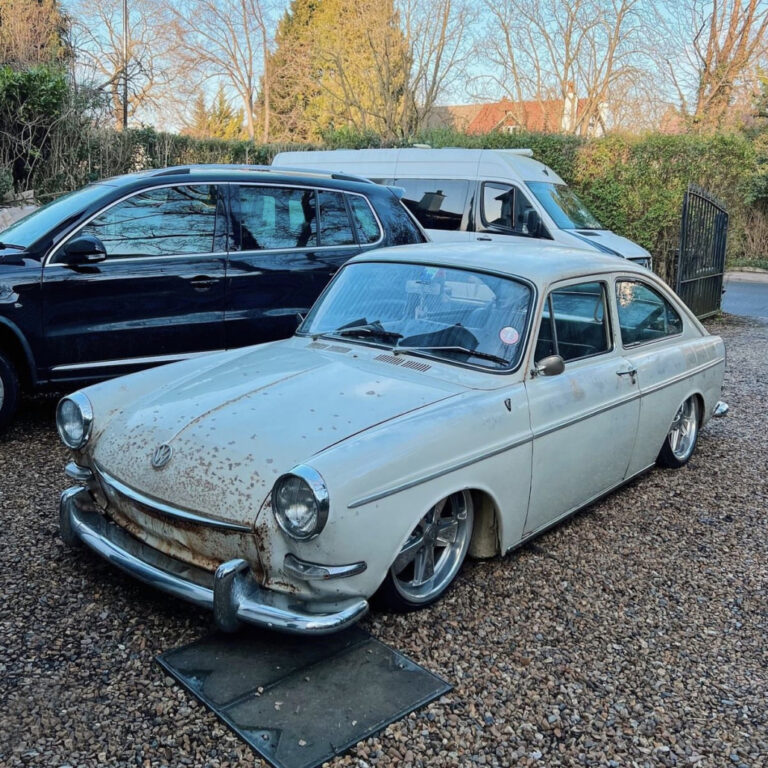

• VW Type 3 and Type 34: Fastback, Squareback, Notchback and Razor Edge vehicles fitted with compatible Limebug Type 1/Type 3 Jawbreaker conversion beams.

The MOA430 is not a direct-fit solution for 1302 or 1303 MacPherson-strut Beetles.

Limebug recommends using MOA430 shocks with Titan Through Rods to achieve the intended suspension operation and travel characteristics.

Installation compatibility must be confirmed against the actual beam, mounting configuration and available clearances.

The difference is in the engineering

The MOA430 wasn’t developed simply to make an air-cooled Volkswagen sit lower.

It was designed to provide a more complete solution to the challenges of compact air suspension: lifting performance, controlled damping, structural strength, alignment and clearance.

From the twin-cavity construction and low-friction rollover sleeve to the machined Goldtop headstock and spherical bearing mounts, each component has a specific purpose.

The result is a purpose-engineered suspension unit for classic Volkswagens, rather than a universal air shock adapted to fit.

Explore the Limebug MOA430 Goldtop Air Shocks — available as a pair for compatible Limebug air suspension installations.
