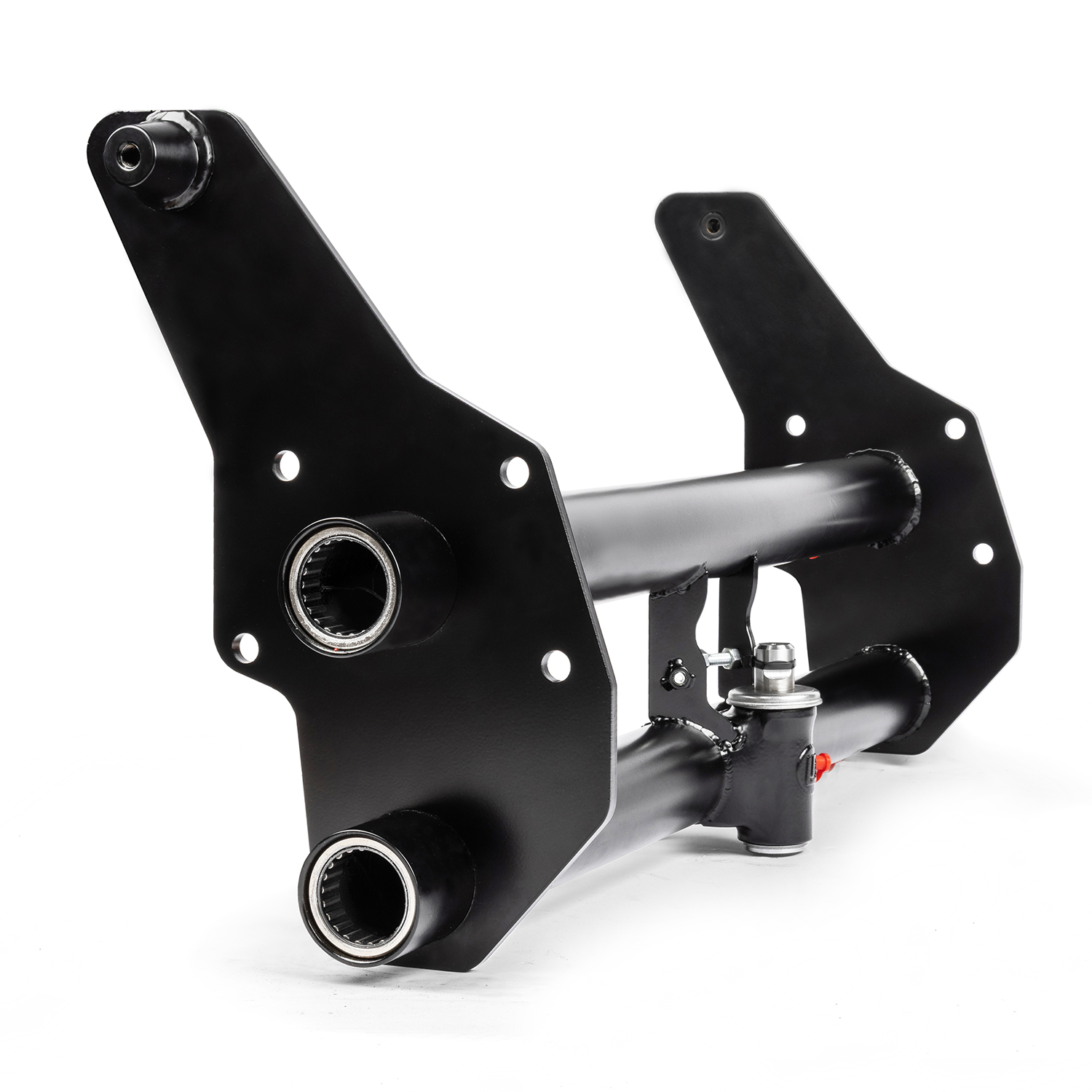

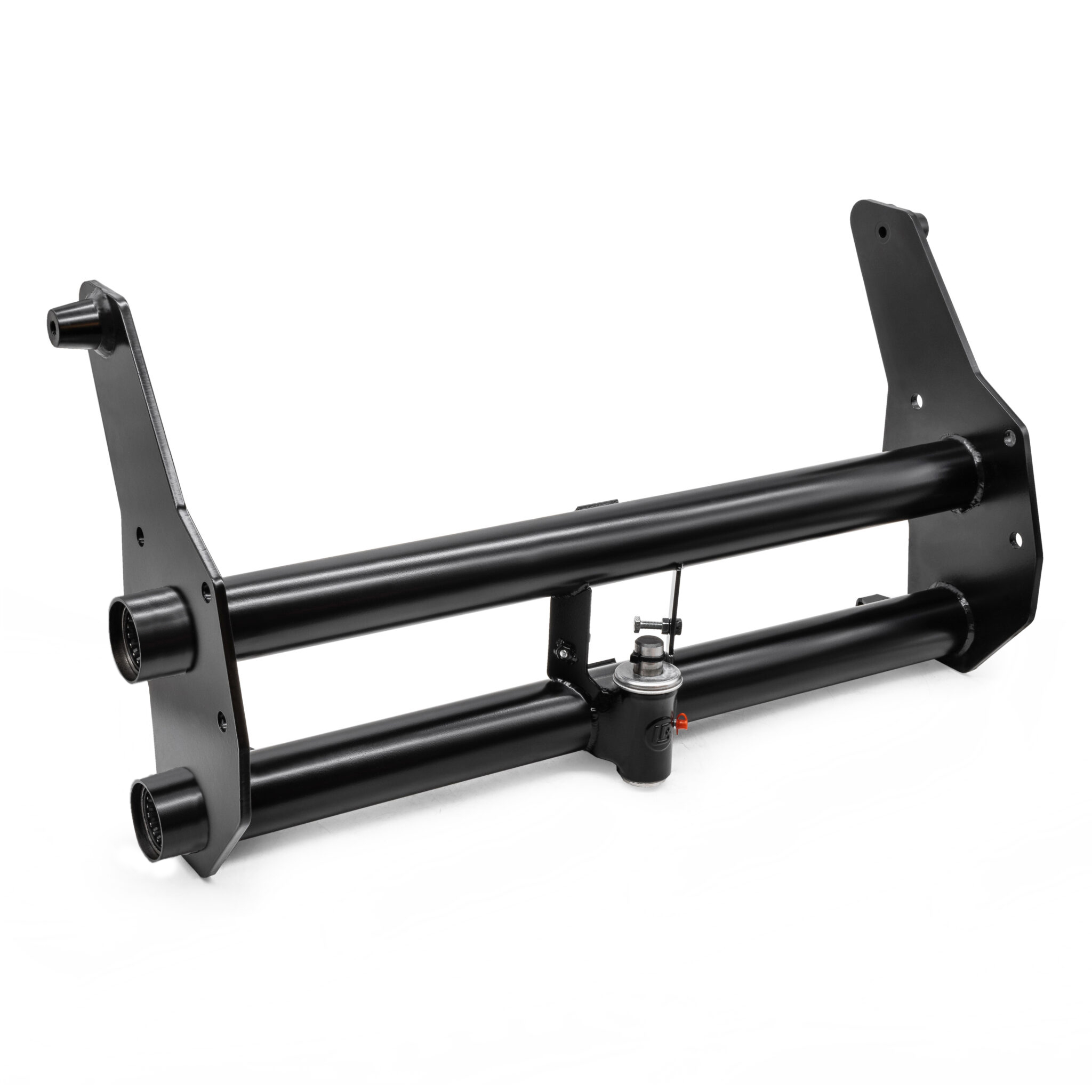

T2 1954-67 Split Screen Stock Width Beam T2A
Classic Aircooled VW T2 Beams parts by Limebug
Aircooled VW Split Screen K&L Stock Width Beams, the industry standard in quality
Titan Engineering T2 Split Screen Stock Width, installation is simple and easy with no body modifications. Each beam is built by robots in the UK and fettled to spec by hand. Limebug is the leading supplier of narrowed beams in the industry.
Each beam is produced from CDS (Cold Drawn Steel) Seamless tubing, then turned to length, each adjuster slot is then milled into the tubing along with the 4x grease points. Next we fit our custom Xero adjusters in place which give over 6" of adjustment travel. These adjusters are set in place in such a way as to achieve maximum drop and still give a great range of upper adjustment on nearly all configurations.
Next we laser cut 8mm steel into our beautifully designed end plates.
For the final step in the metal core assembly process, we precision load the components into the robot welding cell, at this point we fit the pre-fabriacted steering pin and stop assembly to the lower tube.
Now the core is built we install our uniquely designed grease cavity / Delrin bushings system. This configuration allows the use of Delrin bushes which have great low wearing properties and will not damage your trailing arms over time, they also do not squeak like Urethane. Finally this also allows you to run factory grease seals keeping your grease in the beam, where it should be.
So thats how the industry standard of narrowed front axle is made and some of the fantastic features it offers. All beams have the option to a powder coated finish, RHD / LHD, torsion leaves, track rods etc etc. Let Limebug cut out the guesswork and have a hassle free install.
We can now offer worldwide shipping on all Limebug beams. Typically holding over one hundred beam cores on the shelf we can supply the industry standard in quality and finish.
– CDS Mech Grade Tubing
– 8mm Lasercut End-plates
– Unique Grease Cavity System
– Genuine delrin Bushes
– 4x Grease Nipples Fitted
– Custom Steering Damper Mount Fitted
– RHD or LHD
– Supplied in Raw Finish or Powdercoated
– Designed, Manufactered and Assembled in the UK
Titan Engineering OE Narrowed Torsion Leaves
Professionally narrowed torsion leaves are the only way to narrow and lower your VW safely. As accredited and certified engineers we give a true cut to the length which work perfectly with our Beams / Front axles. We also use a custom made solid carbide dimple tool to re-produce the factory dimple to the correct depth and pitch.
Each leaf is chopped down to give the correct shoulder distance to the edge for safety and a clean finish.
All leaves are either OE quality or genuine original stacks refurbished, this is stock dependent.
