1954-67 Split Screen 4″ Narrowed Elite Series Adjustable Beam
From £665.95
BACK IN STOCK
Waiting for stock?
Enter your email and we’ll let you know as soon as this item has physical stock available again.
Powdercoat Finish
Beam finishing in our high quality Satin Black Powdercoat
Which side drive is the vehicle?
Tie Rods
Do you require Tie Rods?
Tie Rod Ends
Do you require Tie Rod Ends?
Torsion Leaves
Narrowed Torsion Leaves are required for use with a narrowed beam
T2 Grease Seals
Replace your worn grease seals
Lower Shock Relocators
Do you require lower shock mount relocators?
Backorder
Description
Elite Series Split Screen Beams are built around a versatile design including direct mount with no body / chassis modification for Narrowed and Stock width models, flexibility for Air Ride and Static applications as standard, fitted with roller needle bearings as per original Split Screen beam assembly, ambidextrous fixings for LHD and RHD models as well as both a factory and 1” beam raise built into every end plate.

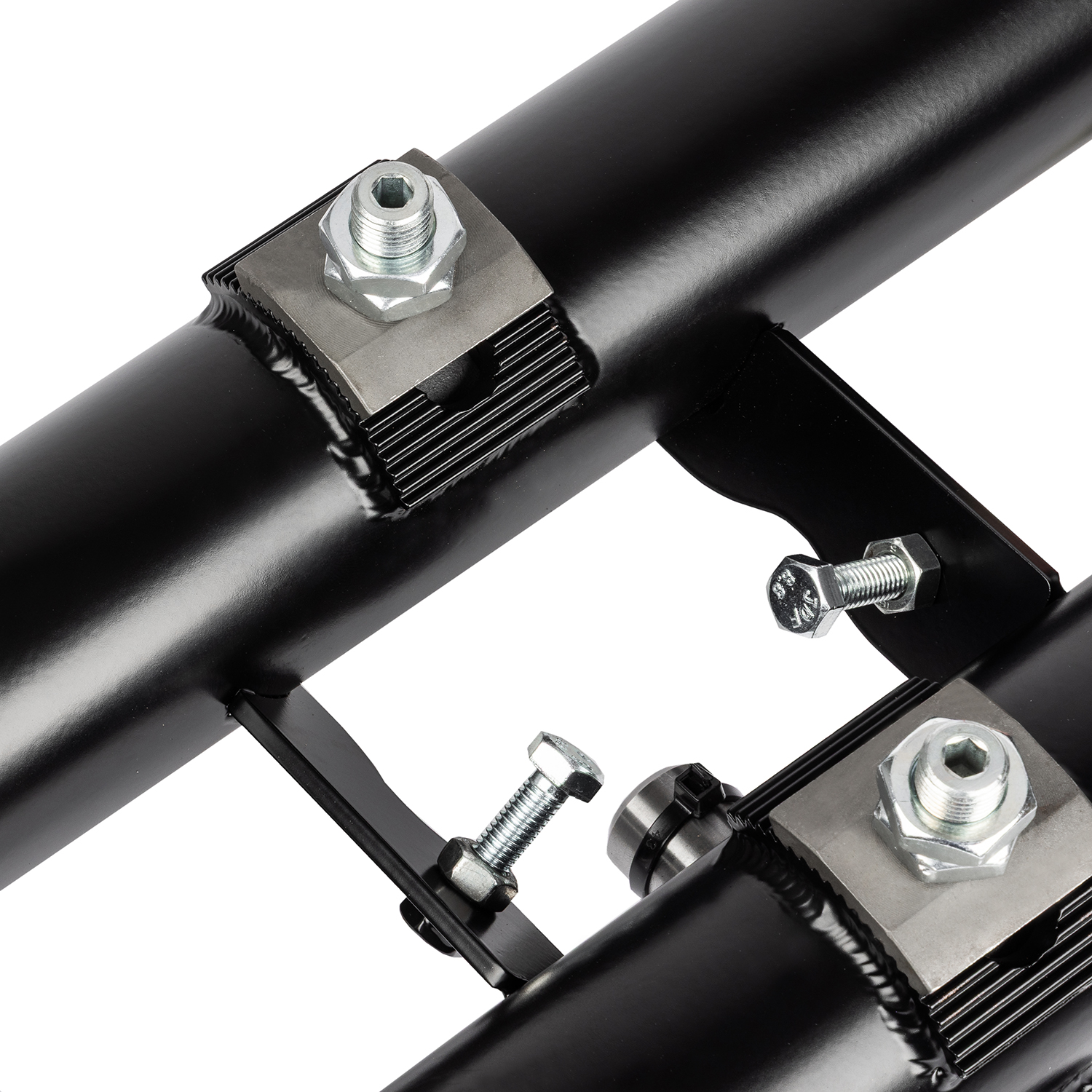

Combining this with an increase in castor over factory axle design to achieve improved road holding, particularly at speed whilst also reducing lane wander. Fixed via dual adjusters on both upper and lower CDS single piece beam tube’s and linked to the spindles via our own design raised/ tucked steering pin mount.
Each steering pin is relocated tighter to the beam, both counteracting the effect of increased castor in reference the drag link rod whilst most importantly resolving ackermann angle issues on our 2” and 4” narrowed models. This increases both lock-to-lock travel whilst reducing steering weight at slower speeds.
Further to these features we offer CNC’d Torsion Leaves / Through Rods depending on your application, plus solid core Track Rods pre-narrowed and ready to install as well as brake servo mounts. See options and links below.
For Static Ride Height Application (Torsion Bars)
Narrowed Torsion Leaves
Narrowed Track Rods
For Air Ride Application (Through Rods)
Narrowed Through Rods
Narrowed Track Rods
Heavy Duty Air Shocks
Shock Relocators
Beam Specifications:
– CDS Mech Grade Tubing

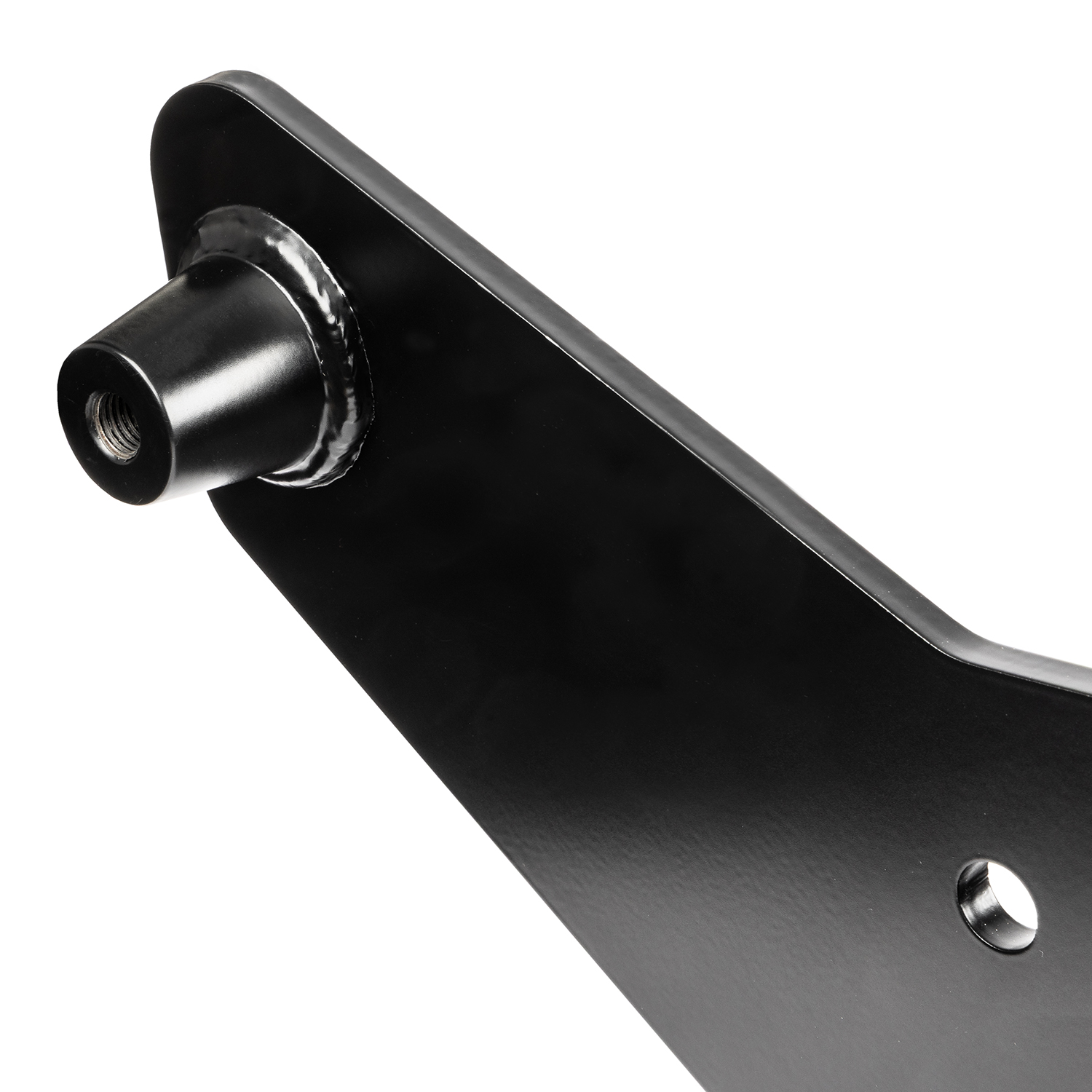

– 8mm Lasercut End-plates
– Unique Grease Cavity System

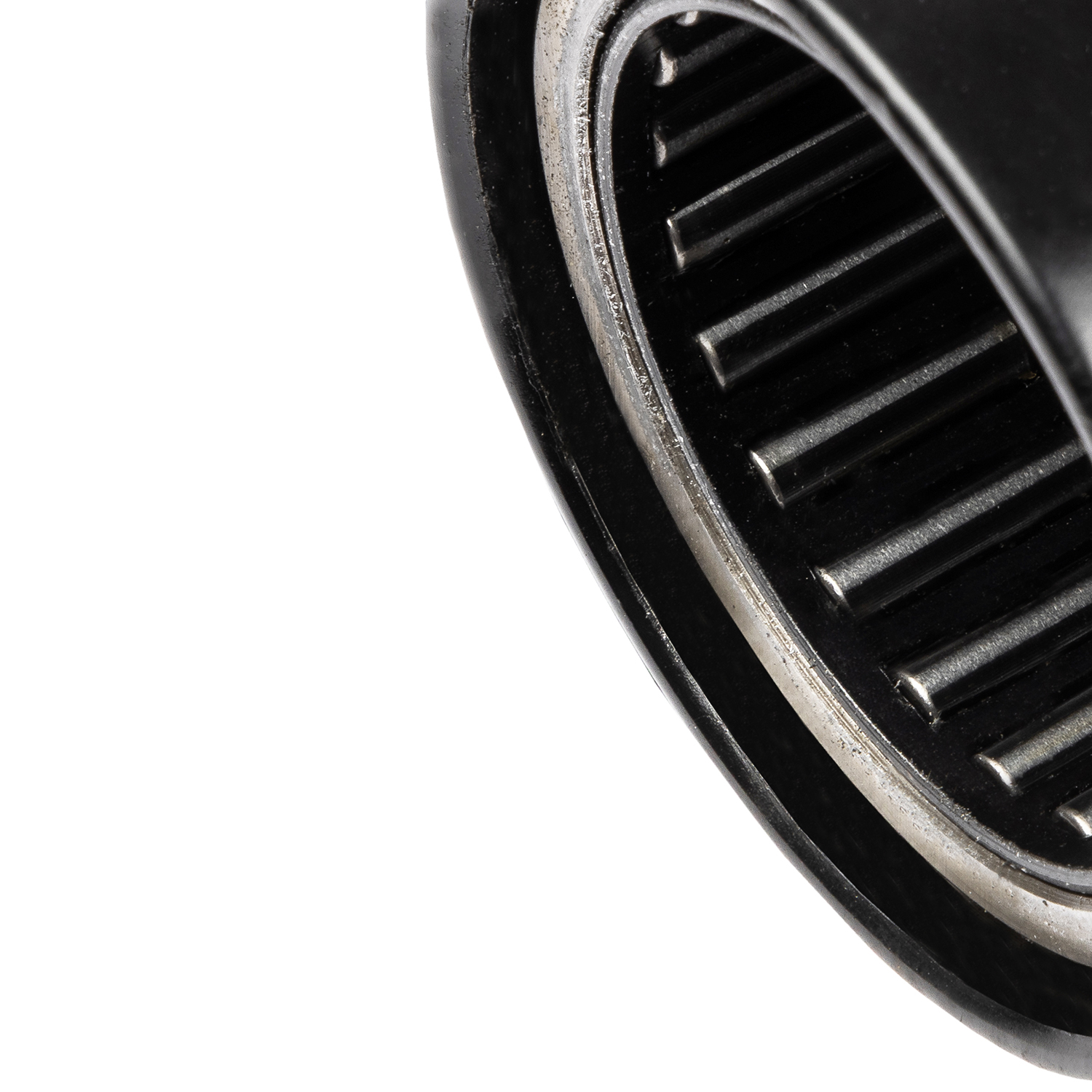

– OEM Quality Needle Roller Bearings
– 4x Grease Nipples Fitted
– Custom Steering Damper Mount Fitted
– Low Profile Adjustable Steering Stop
– RHD or LHD
– Supplied in Raw Finish or Powdercoated Black
– Designed, Manufactured and Assembled in the UK

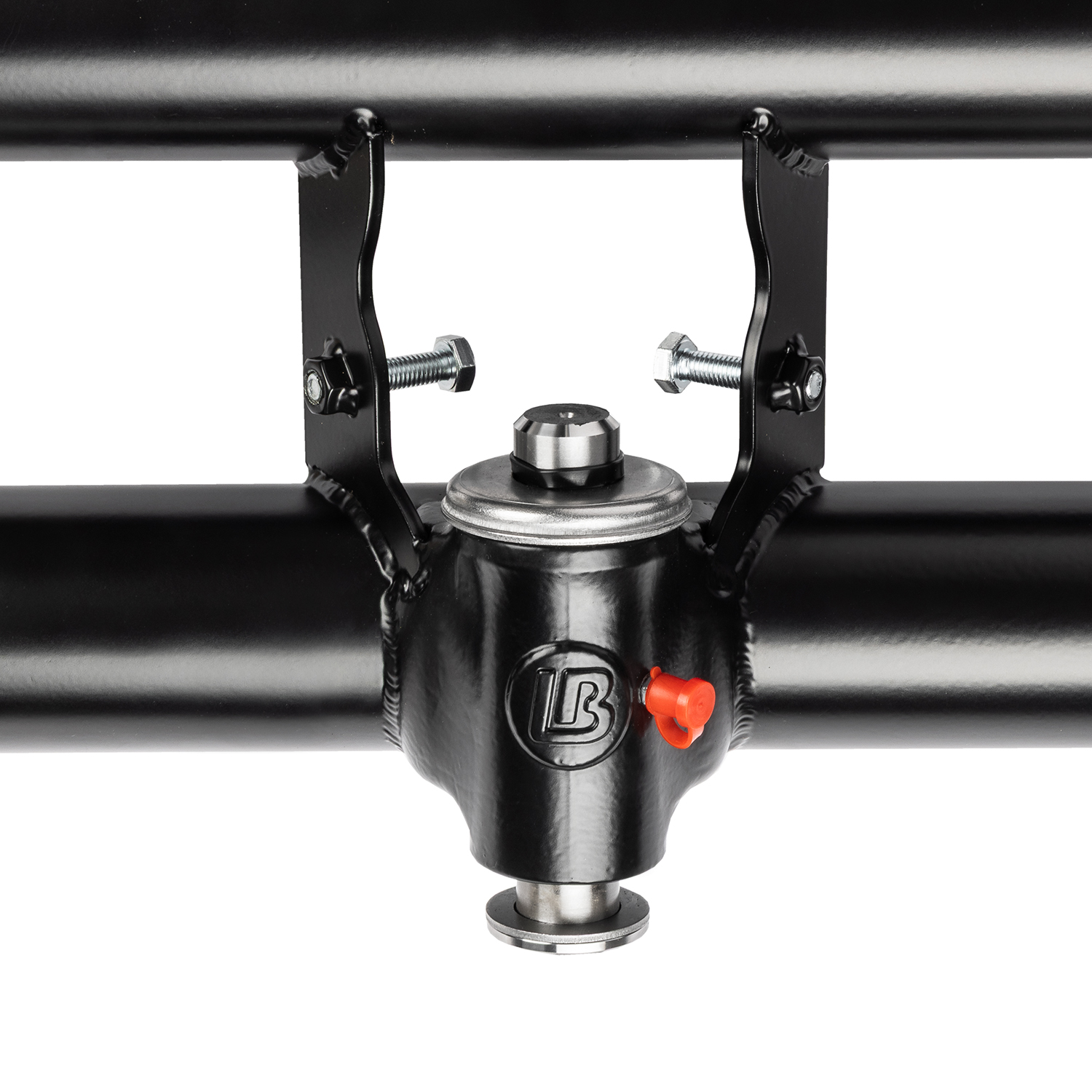

– Tucked / Raised Steering Pin
– Pre-reamed Steering Pin for direct installation
– Dual Tier Mounts for Stock and 1" Beam Raise
Please note: For 1964-1967 Split Screen models, please ensure the race on the trailing arm is removed. The trailing arm also needs to be linished to exactly 43mm – if the arm measures over this diameter it may cause stiffness or binding when installing the trailing arm into the beam.
