1960-79 Beetle / Ghia 36HP Style Twin Port Doghouse Fan Shroud With Heater Outlets
£109.95inc 20% VAT
OE Code: 25091-1
Only 1 left In Stock
Description
What is this part called?
1960-79 Beetle / Ghia 36HP Style Twin Port Doghouse Fan Shroud With Heater Outlets
What does this part do on a VW?

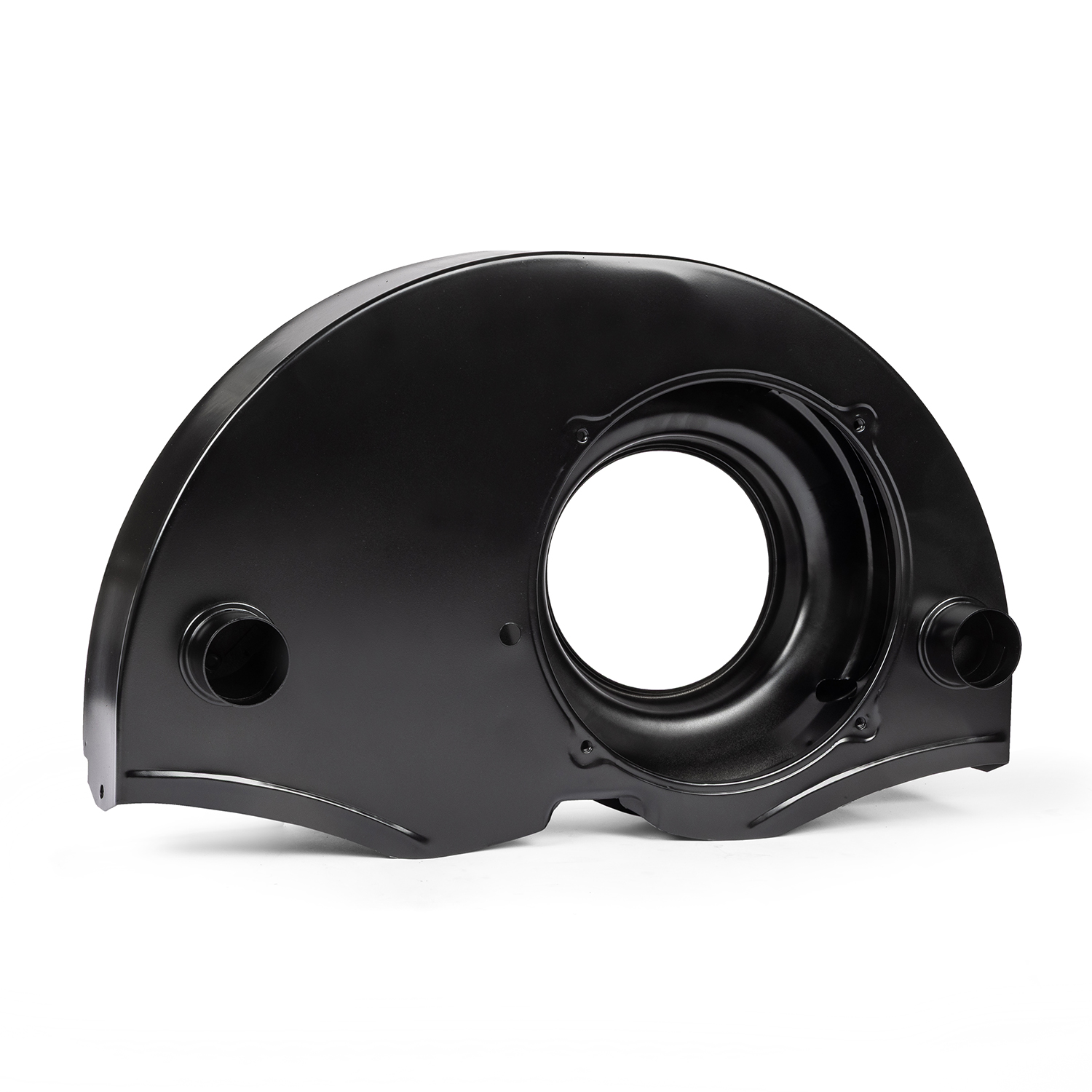

This black 36HP-style fan shroud is designed for twin port aircooled VW engines fitted with the later doghouse oil cooler system. It directs cooling air over the cylinder heads and barrels while also accommodating the offset doghouse oil cooler arrangement.
The rounded 36HP-style shape provides a cleaner, more compact appearance than the standard late fan shroud and offers additional clearance around many twin carburettor installations.
This version is fitted with fresh air outlets for vehicles retaining heater boxes and the original heating system.
What are the key features?
- 36HP-style rounded fan shroud
- Designed for twin port aircooled VW engines
- Doghouse oil cooler configuration
- Black finish
- Fresh air heater outlets
- Correct internal cooling ducts and air directing vanes
- Designed for use with the twin port cooling fan
- Suitable for 1300cc, 1500cc and 1600cc engine applications
- Provides additional clearance around many twin carburettor installations
- Supplied individually
Which VW models will this fit?
- Beetle 1960-1979 – with compatible twin port engine
- Karmann Ghia 1960-1974 – with compatible twin port engine
- Split Screen 1960-1967 – with compatible twin port engine conversion
- Bay Window 1968-1979 – with compatible Type 1 twin port engine
Please Note
This fan shroud is designed for engines using the doghouse-style oil cooler system and twin port cooling fan.
The fresh air outlets allow connection to compatible heater boxes for vehicles retaining the original heating system.
The accelerator cable opening is not pre-drilled and will need to be drilled to suit the individual installation. This style of aftermarket fan shroud does not accept the original thermostatically controlled cooling flaps.
The black finish is primarily a protective transit coating. For improved long-term durability, painting or powder coating is recommended before installation.
What is the SKU for this part?
SKU: 010110057
