Description

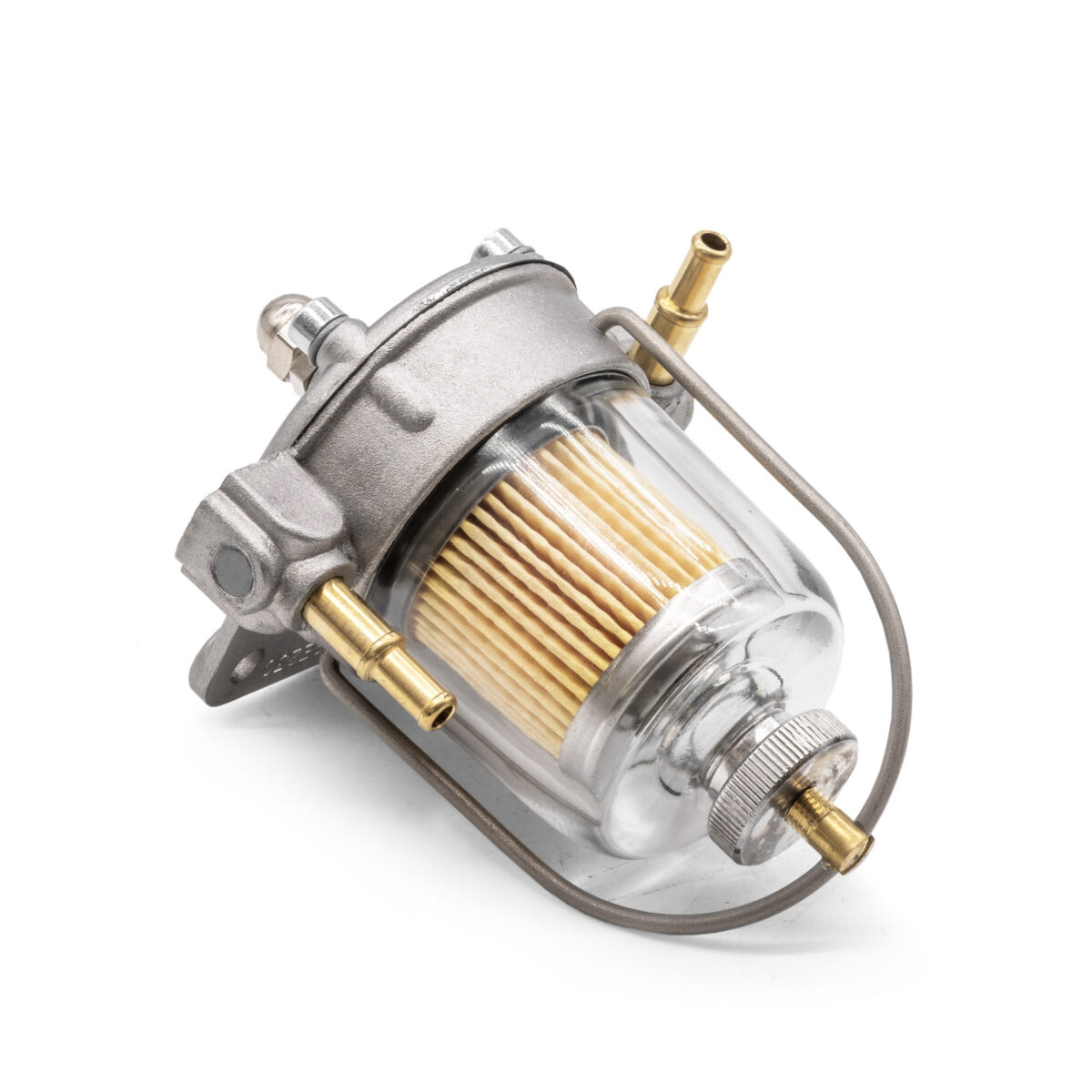

Malpassi 67mm Filter King Fuel Pressure Regulator, 6/8mm Unions, Glass Bowl
Classic Aircooled VW Pumps Regulators and Fuel Filters parts by Limebug
An essential upgrade if running twin carburettors and an electric fuel pump; these regulators will ensure a consistent flow of fuel at the correct pressure to suit your carbs. Supplied with a mounting bracket, and suitable for both 6mm and 8mm fuel lines, these fully adjustable fuel pressure regulators make a great addition to any VW.
These fuel pressure regulators have been part of a competition fuel system, and a common sight on motorsport vehicles over the past 25 years. The FILTER KING is a popular unit, regularly seen in the motorsport field because of its ability to regulate and filter fuel without restriction. So replace your fuel regulator and filter system with this tried and tested unit.
Fitting Guidelines:
ITo adjust the pressure to the carb, take off the top dome nut, loosen the locking nut and turn (1/4 of a turn at each time) the adjusting screw clockwise to increase the pressure anticlockwise to decrease it, until reaching the desired pressure. Lock first the locking nut and then the top dome nut. Most carbs require about 2.5 psi.
Designed to mount between your fuel pump and the carburettor. Please read the safety instructions about fitting that are included in the box.
Specification:
67mm Glass Bowl
Height:- 120mm
Width:- 100mm
Weight:- 370 gms
Filter Micron:- 10
Unions:- 8/6mm
Pressure Range:- 1-7 psi
Can be used with E10 Fuel
SKU: 010090254
Malpassi 67mm Filter King Fuel Pressure Regulator, 6/8mm Unions, Glass Bowl
£79.99inc 20% VAT
An essential upgrade if running twin carburettors and an electric fuel pump; these regulators will ensure a consistent flow of fuel at the correct pressure to suit your carbs. Supplied with a mounting bracket, and suitable for both 6mm and 8mm fuel lines, these fully adjustable fuel pressure regulators make a great addition to any VW.
Description
Malpassi 67mm Filter King Fuel Pressure Regulator, 6/8mm Unions, Glass Bowl
Classic Aircooled VW Pumps Regulators and Fuel Filters parts by Limebug
An essential upgrade if running twin carburettors and an electric fuel pump; these regulators will ensure a consistent flow of fuel at the correct pressure to suit your carbs. Supplied with a mounting bracket, and suitable for both 6mm and 8mm fuel lines, these fully adjustable fuel pressure regulators make a great addition to any VW.
These fuel pressure regulators have been part of a competition fuel system, and a common sight on motorsport vehicles over the past 25 years. The FILTER KING is a popular unit, regularly seen in the motorsport field because of its ability to regulate and filter fuel without restriction. So replace your fuel regulator and filter system with this tried and tested unit.
Fitting Guidelines:
ITo adjust the pressure to the carb, take off the top dome nut, loosen the locking nut and turn (1/4 of a turn at each time) the adjusting screw clockwise to increase the pressure anticlockwise to decrease it, until reaching the desired pressure. Lock first the locking nut and then the top dome nut. Most carbs require about 2.5 psi.
Designed to mount between your fuel pump and the carburettor. Please read the safety instructions about fitting that are included in the box.
Specification:
67mm Glass Bowl
Height:- 120mm
Width:- 100mm
Weight:- 370 gms
Filter Micron:- 10
Unions:- 8/6mm
Pressure Range:- 1-7 psi
Can be used with E10 Fuel
SKU: 010090254
