MOA430HD Goldtops Ultimate T2 Bay Window Air Ride Front Shock / Sleeve Bag Struts, Pair

The MOA430HD Goldtop Ultimate Aircooled VW air shocks, specifically engineered for T2 Bay Window applications, the only air strut with accurate lifting heights, compliant ride with damping tuned specifically for the demanding lightweight rear engined configuration. Featuring Limebug's unique twin cavity body comprising of a damping module and lift module.

Explore more on the ultimate aircooled air shock

Spherical Bearing Mounts

Kevlar lined spherical bearings mounted upper and lower equipped with anti rattle technology. Manufactured with several key details, foremost the inner diameter of the rose joint is correct 12mm stem and length size for perfect OEM fit. Running upper and lower dust seals for all climate running with retaining top hats.

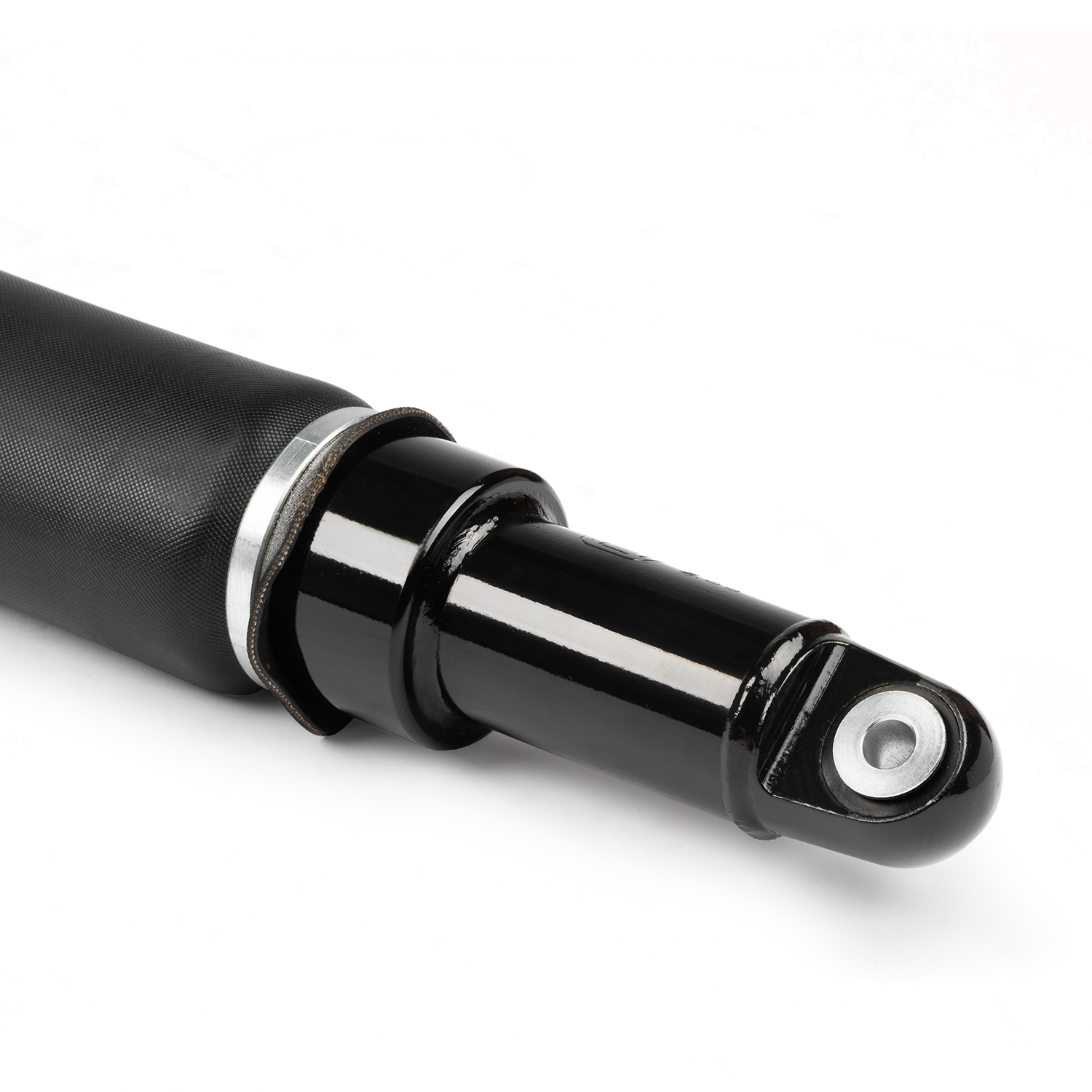

Body and Bag

Ultra strong chromoly construction with robot welded body. Oil valving / damping tuned to specific vehicle mass. Add to this the tapered rubber sleeve, harnessing a unique rollover lower section designed to allow constant flexibility at all heights with no increase in maximum diameter., Retained with a ratcheted body, ultra strong grooved collar and rated to over 700lbs of lifting force. The body also is tuned in dimension to allow upper tower clearance, lower relocator clearance and mid body trailing arm clearance, especially on King and Link pin configurations, this also increases the steering limits.

Internal Design

Surface area was always the goal, the narrow bore piston retains residual strength taken from the proven stem coil-over giving the shock lateral stiffness way beyond the required need for a shock making this technically an air strut. This piston twinned with the 80mm (Approx) bag body increases surface area of lifting to almost 10x mass to the equivalent product at driving pressures, meaning true accurate heights, less deviation across width of vehicle and ultra accurate control through smooth supported piston movement.

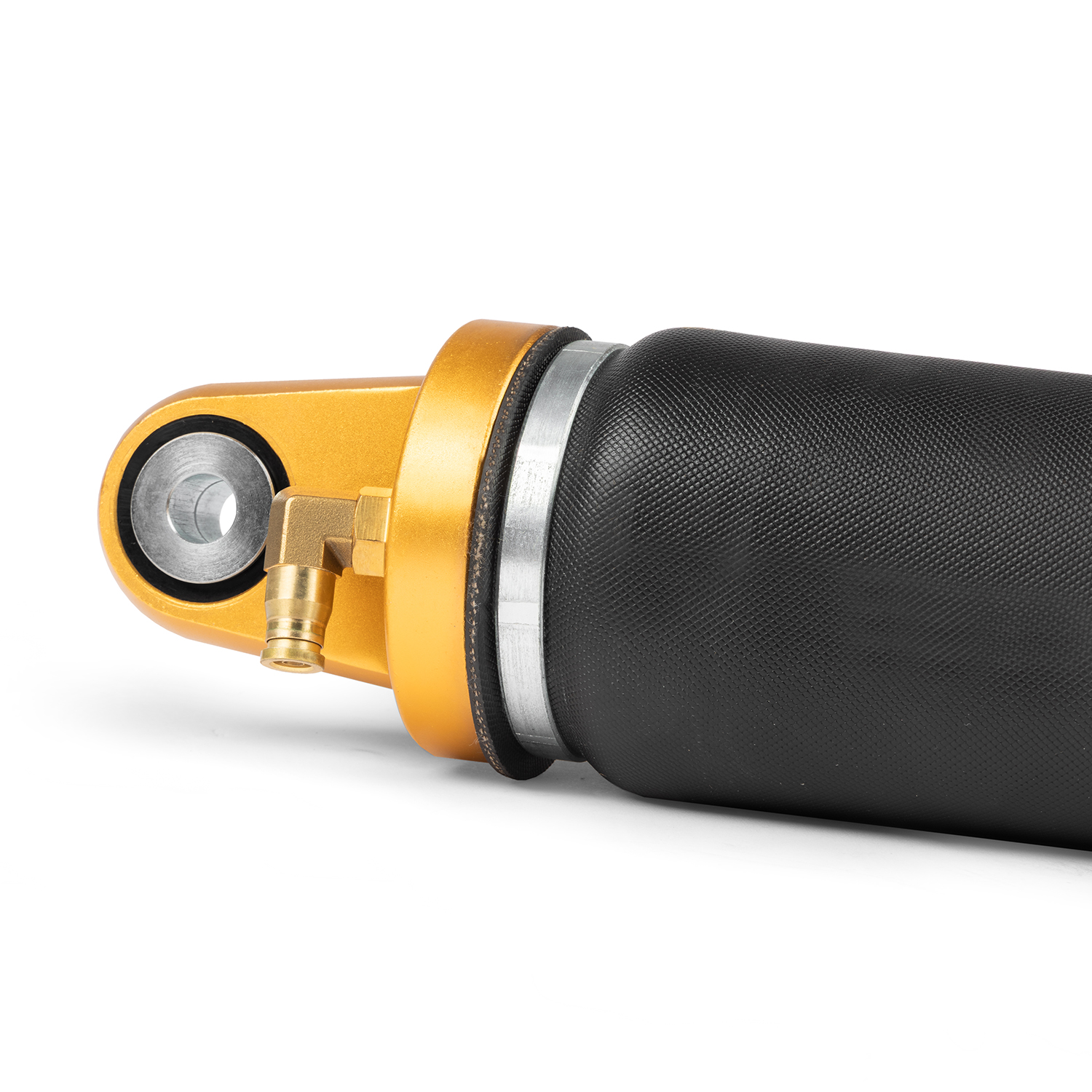

Goldtop

The goldtop, manufactured in 6082 aluminum, visually can be seen the narrow headstock giving ultimate clearance to narrowed front axles, maximum clearance to trailing arm, chassis legs and steering components. The square stem deliberately long to give freedom to float forward and backward without intrusion to supporting components and also giving height to allow the air tap to remain ultra accessible and run either visual or hidden depending on user preference. Aluminum headstock provides the tapered air port in industry standard NPT fixing (included) to 1/4" ptc rotating air tap. Internally 8 degree hollowed out cup to the seal ring barb giving options for armoured and 3/8" installations. This pocket increases drop by a further 1.25" giving unparalleled lift vs drop.

Designed for the following models

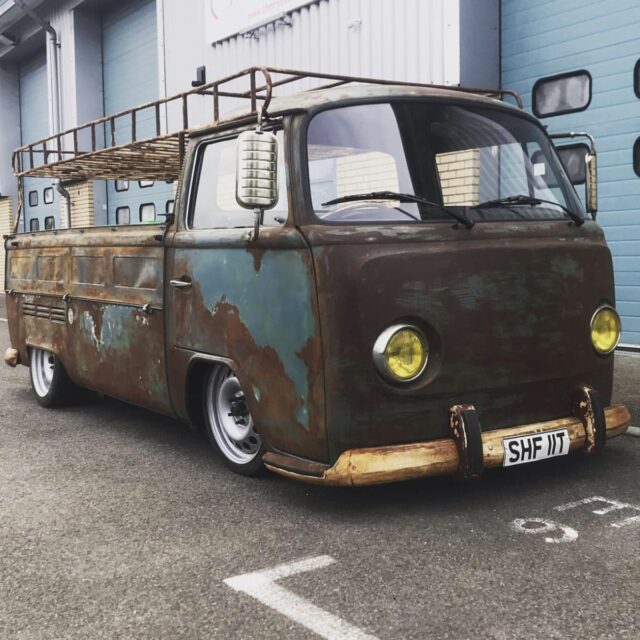

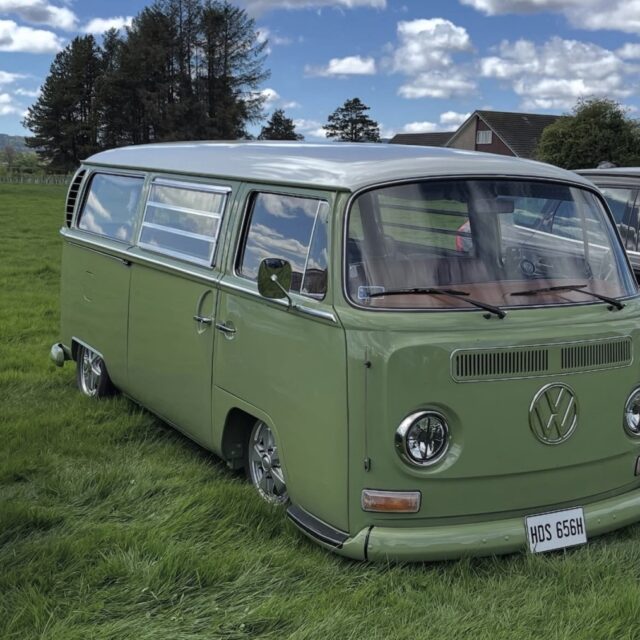

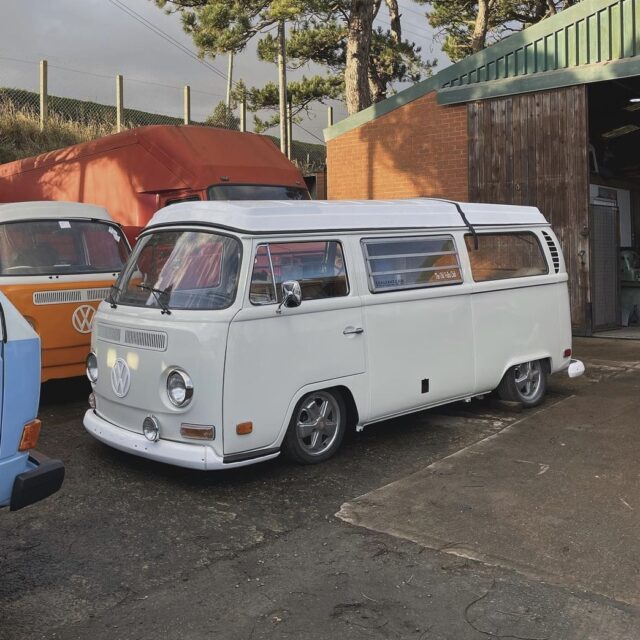

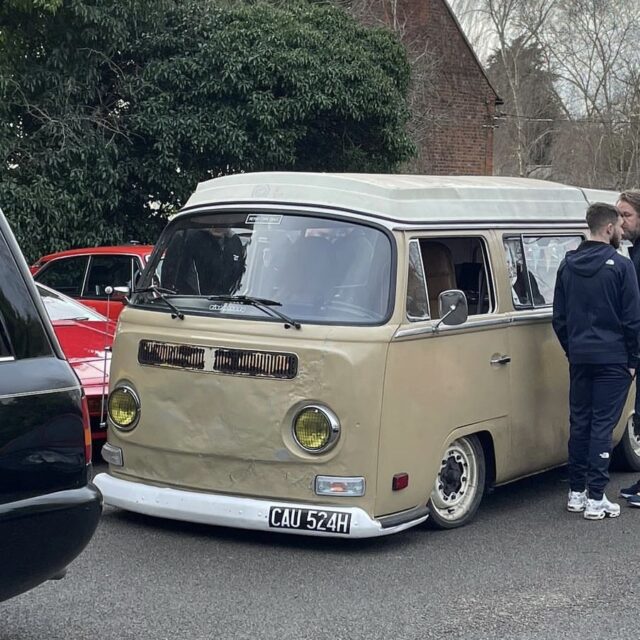

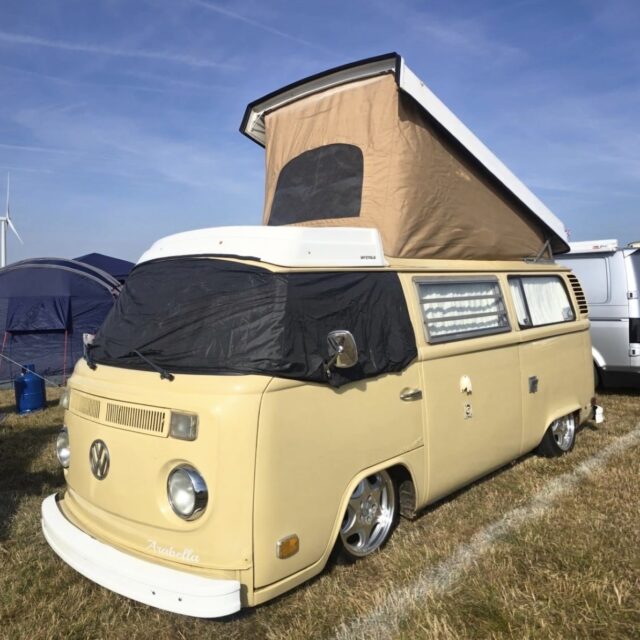

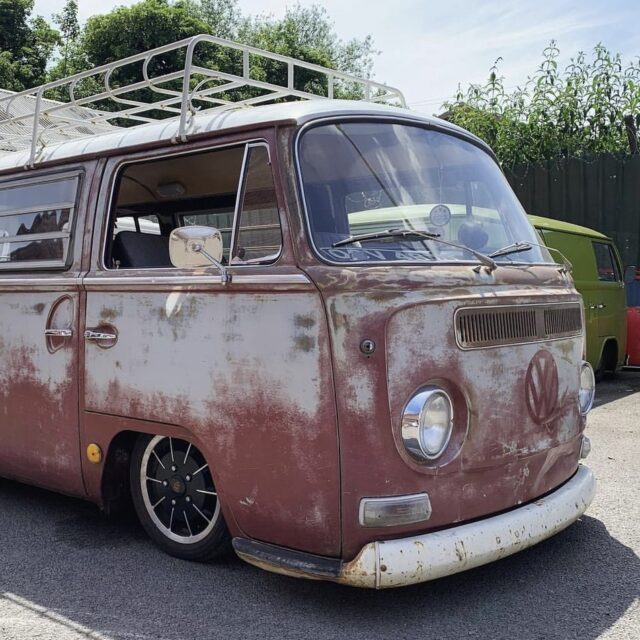

• T2 1968-79 Bay Window Bus

Note: MOA430HD Shocks are configured to operate with Bolt on Shock Relocator P/N: 030030044, do not directly fit to factory damper mount

Data

• 295mm-430mm (11.6"-17") Compressed-Extended Range.
• 700lbs of lifting force at 100PSI with re-In forced sidewall.
• Rose Joint (spherical joint) Ends top and bottom to allow for our of true perfect operation.
• Metric 12mm Bosses top and bottom
• 1/4" NPT Sunken Air Tap Mount 1/4" PTC as standard / interchangeable.
• Shallow cut on the lower body for trailing arm clearance through the travel range.
• Scalloped top mount for beam clearance Restricted 100mm Max Expansion Diameter.

Always use MOA430HD struts with Titan Through Rods and Lower Shock Relocator 030030044 to maximize ride quality, performance and upper/ lower travel limits.

Disclaimer

Warranty is subject to T&C's. This product is designed to work only with Limebug Manufactured Axles/ Beams exclusively.

SKU: 030010324
